SS2421-5041, Sanyo Denki SS24 Series Hybrid, Single Shaft Stepper Motor, 83mNm Torque, 24 V, 1.8°, 42 x 42mm Frame, 5mm Shaft, Шаговый двигатель

Sanyo Denki Pancake Bipolar Stepper Motor

Sanyo Denki Sanmotion bipolar pancake stepper motors provide the user with a powerful motor option for space-restrictive applications

Lead wire bipolar winding construction

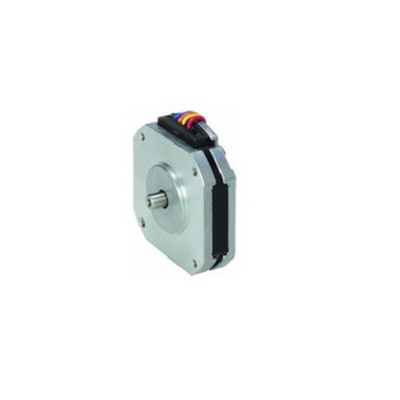

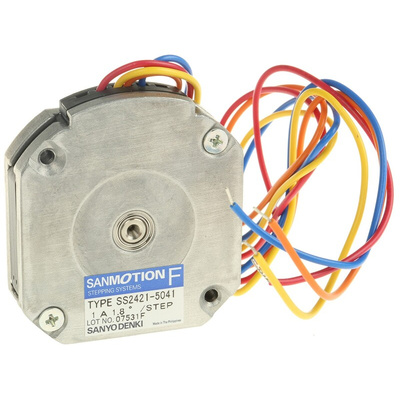

Sanyo Denki Bipolar Pancake Stepper Motor, 1.8° Step Angle, 1A - SS24 Series - SS2421-5041

Use this stepper motor from Sanyo Denki in areas where space is limited. This pancake-shaped device has a small depth of just 11.6mm, so it's easy to fit inside compact electronics and machine tools. The bipolar winding means it has a high holding torque of 83mNm, making it a good choice for applications where you need high torque at a low speed. As it's a hybrid stepper motor, it can move in small increments to a step angle of 1.8° for a high degree of precision. It's commonly used in applications such as robotic arms and CNC machines.

Features & Benefits

• Lead wires are colour-coded for ease of installation
• IP40 rating indicates it's protected against solid objects over 1mm in size
• Wide operating temperature range between -10°C and +50°C for use in demanding environments

Applications

• Motion control
• Industrial automation
• Medical devices
• Computing equipment and robotics

What's the advantage of using a stepper motor rather than a conventional motor?

Stepper motors don't have contact brushes like conventional motors do, meaning that there's a reduced risk of mechanical wear for more reliable performance.
