SS2422-5041, Sanyo Denki SS24 Series Hybrid, Single Shaft Stepper Motor, 18.6mNm Torque, 24 V, 1.8°, 42 x 42mm Frame, 5mm Shaft, Шаговый двигатель

Sanyo Denki Pancake Bipolar Stepper Motor

Sanyo Denki Sanmotion bipolar pancake stepper motors provide the user with a powerful motor option for space-restrictive applications

Lead wire bipolar winding construction

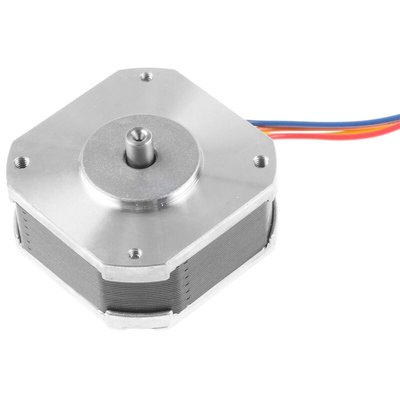

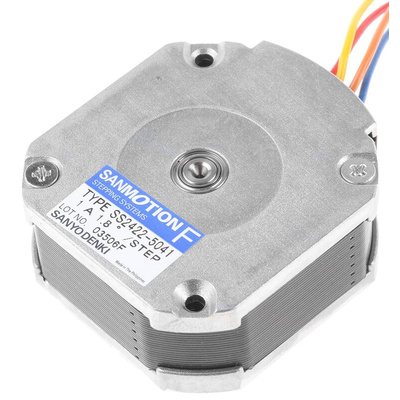

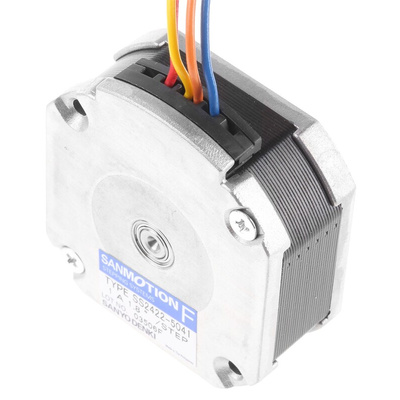

Sanyo Denki Bipolar Pancake Stepper Motor, 1.8° Step Angle, 18.6mNm Holding Torque - SS24 Series - SS2422-5041

Achieve exact positioning and speed control with this single-shaft, bipolar pancake stepper motor from Sanyo Denki. The accurate repeatable steps provide computer-controlled precision for your applications. You can use this powerful motor for applications that require maximum torque at low speeds thanks to its bipolar winding. The unit carries an IP40 rating, which means it's touchproof and protected against tools and wires larger than 1mm in size for safe handling.

Features & Benefits

• Wide operating temperature range between -10°C and ＋50°C for use in harsh environments
• Compact frame size of 42 (length) x 42mm (width) for installation in areas where space is limited
• Light weight of 0.14kg to minimise strain on your equipment
• Current rating of 1A for use in low-power applications

Applications

• 3D Printers
• Camera platforms
• Robotics
• Process automation
• Precision positioning equipment

Why should I use a stepper motor?

A stepper motor is a versatile and reliable way of controlling precise motor movements. To suit your operations, you can choose between different types, such as bipolar or hybrid stepper motors.

Sanyo Denki Stepper Motor

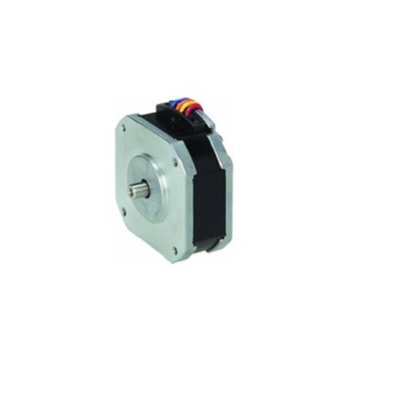

SS2422-5041 Bipolar 42mm pancake stepper motor Sanyo Denki

Sanyo Denki - Range Overview
