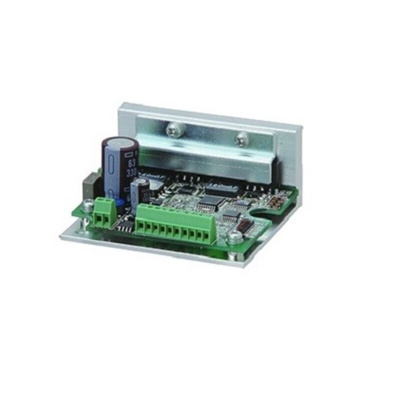

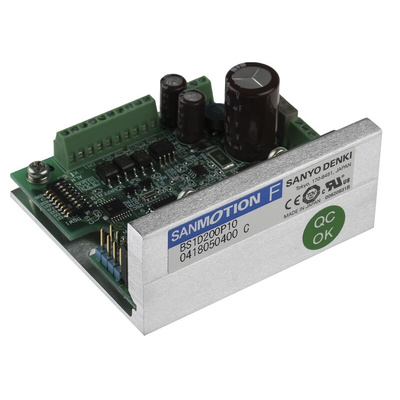

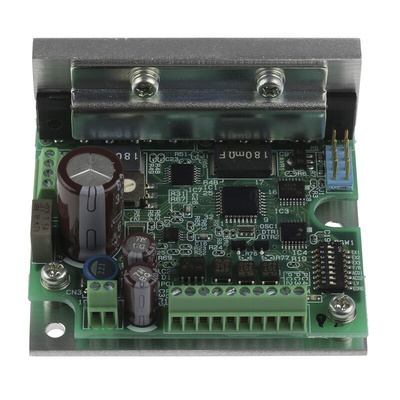

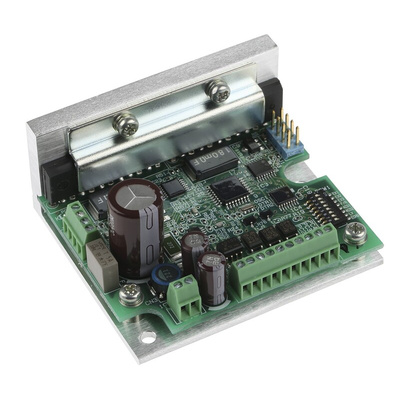

BS1D200P10, Sanyo Denki Stepper Motor Controller, 2 Phase, 3 A, 36 V dc

Sanyo Denki Sanmotion Microstepping Driver

Sanyo Denki Sanmotion driver provides the user with a simple to run driver with a comprehesive amount of applications

Available in Bipolar (829-3553) & Unipolar (829-3556) options
Can be set to various preset values for quick installation
Low vibration mode provices the user smooth operation for more delicate applications
LED indication of power and status
configurations made via a DIP switchpack located on the board

Sanyo Denki Stepper Motor Controller, 3A, 90g - SANMOTION BS1D200 Series - BS1D200P10

Use this stepper motor controller from Sanyo Denki to start, stop or control the speed of your device. It automatically regulates operational functions, such as the rotational direction, speed and torque of your motor. The controller has a selectable low-vibration mode to achieve smooth operation in demanding applications. You can set the value of the motor current when the unit is running thanks to the operating current selection switch. It features LED indicators to signal the operating status for ease of monitoring.

Features & Benefits

• Wide operating temperature range between 0°C and +50°C for use in demanding environments
• Insulation resistor for protection against electrical shocks
• Light weight of only 90g to add minimal strain to your systems

Applications

• Textile machines
• Printing presses
• Medical imaging machinery
• Robotics
• Gaming machines
• Welding equipment

Are there different types of motor controllers?

Yes, there are. Motor controllers are classified in terms of the motors they drive. These can be magnet, servo, AC or DC or stepper motors. A stepper motor is a good choice when you need to precisely control accurate positioning, rotation angles and operational speeds.
