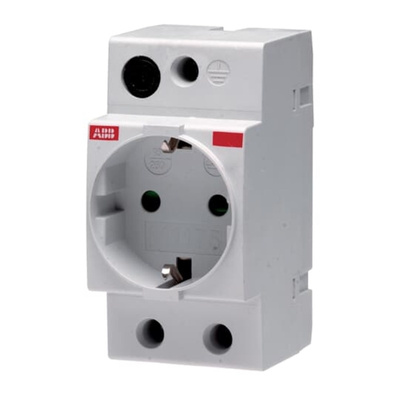

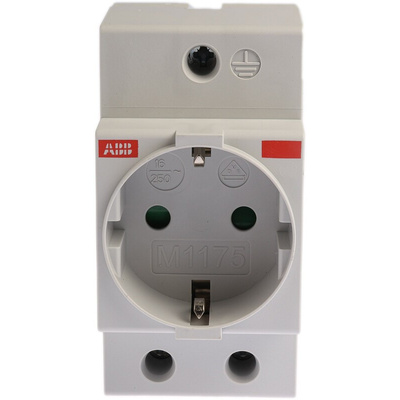

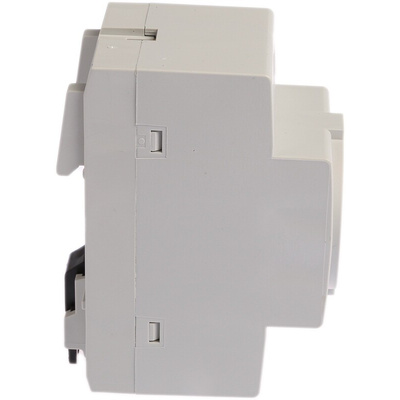

2CSM210000R0721 M1175, ABB Grey 1 Gang Plug Socket, 16A, Type F - German Schuko, Indoor Use

ABB Plug Socket, Grey, 16A Current Rating - M1175 Series - 2CSM210000R0721

Use this plug socket from ABB to reliably connect up your system and distribute power. It's made from sturdy plastic and can be used indoors for applications demanding a maximum current of 16A. As the unit is made to the German Schuko standard, which is widely used throughout Europe, it securely accommodates round plugs with two pins. To make installation quick and simple, it has built-in clips at the back that attach to a standard DIN rail.

Features & Benefits

• IP20 and IP30 ratings when plugged-in indicate protection from tools and wires greater than 2.5mm
• Light weight of 0.115kg means it won't add excess load to your system
• Power loss of 0.6W per pole for energy efficiency
• Compact dimensions of 85 (H) x 45 (W) x 70mm (D) means it's a space-efficient option for easy integration into your setup
• Voltage rating of 250V for use in low-voltage applications

Applications

• Power solutions
• Industrial automation
• Electrical services

Which European countries can I use this plug in?

This unit works in most European countries except for Denmark, the Republic of Ireland, Italy, Cyprus, Malta, Switzerland and the UK.
