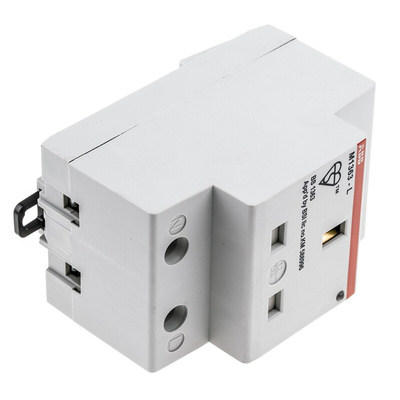

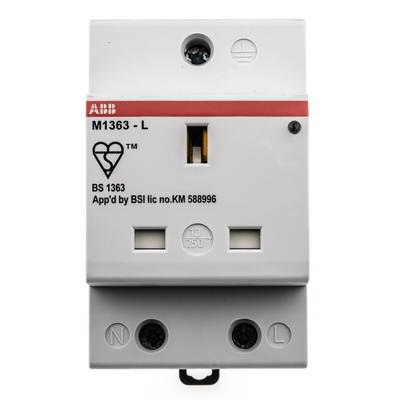

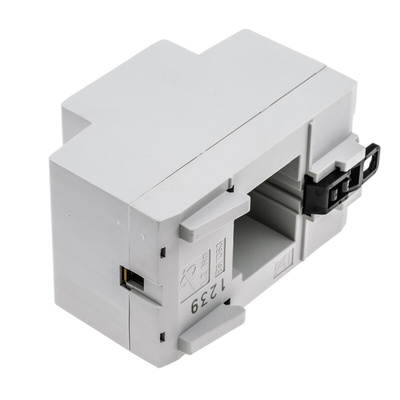

2CSM258163R0721 M1363-L, ABB Grey 1 Gang Plug Socket, 13A, Type G - British, Indoor Use

ABB Plug Socket, Integrated LED Indicator, 100g Weight - 2CSM258163R0721

Want to power your appliances safely? Trust this plug socket from ABB to do the job. It's a one-gang unit designed to energise one piece of equipment at a time. Thanks to a 13A current rating, it fits the bill for high-consuming devices like air conditioners. You don't need tools to mount this socket, as it snaps easily onto a DIN rail, saving you time and effort. It comes with an integrated earth terminal to safely divert excess current to the ground, reducing the risk of fire caused by an electrical fault.

Features & Benefits

• Integrated LED indicator shows when it's energised, making it easy to monitor
• Compact dimensions of 60 (D) x 53 (W) x 85mm (H), for space-efficient installation in busy setups
• 250V rating makes it suitable for use in standard UK circuits

Applications

• Equipment control panels
• Warehouses and distribution centres
• Switchgear systems

Is this socket finger-safe?

Yes, this unit has an IP20 rating, meaning it's finger-safe, as it withstands objects larger than 12 mm in size. This boosts user safety by preventing contact with live parts that could result in an electric shock.

BS Din Rail Mounting Socket with light Data Sheet

Brochure - New Modular Sockets

Catalogue - Modular Din Rail Components
