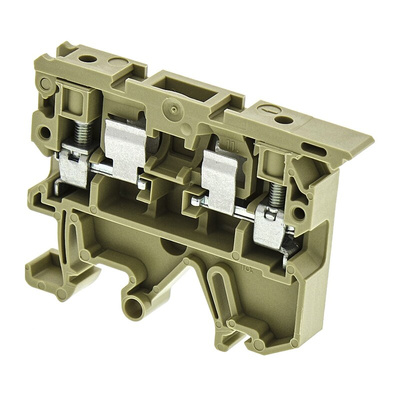

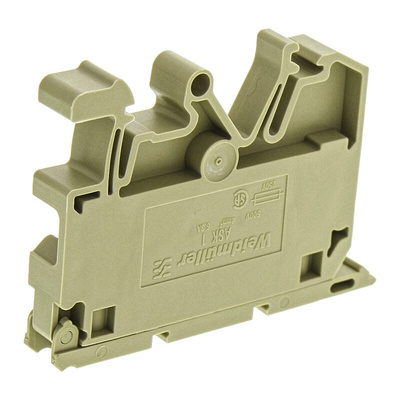

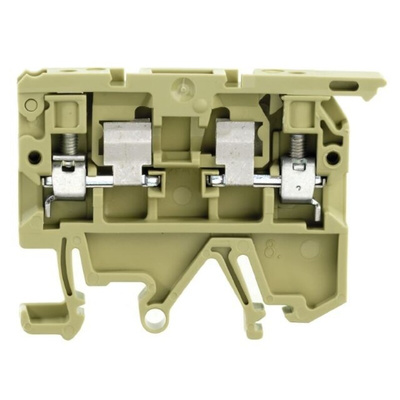

0474560000, Weidmuller SAK Series Brown Fused DIN Rail Terminal, 4mm², Single-Level, Screw Termination, Fused

SAK Series ASK Modular Fuse Terminals

SAK Series ASK 1/EN fused modular DIN rail terminal with TS 32 / TS 35 EN combination foot.

Weidmuller Fused DIN Rail Terminal, 26 to 12AWG Wire Size, Screw Termination - SAK Series - ASK 1/EN

For protection against overcurrent, choose this single-layer fused DIN rail terminal from Weidmuller. It has clamping points that you can use to connect two wires using a simple screw-in method. When it's installed next to other DIN rail-mounted elements, this unit will trip and break the circuit if the current exceeds 6.3A to prevent damage to your equipment. This product has a wide operating temperature range between -50°C and +100°C, so it's suitable for use in challenging conditions.

Features & Benefits

• Supplied in packs of 10 for use in multiple applications
• PA 66 body is resistant to impact and abrasion
• Light weight of 12.74g to place minimal strain on your DIN rail

Applications

• Lighting controllers
• Building management systems
• Telecommunications
• Power supplies
• Energy management

What are the dimensions of this unit?

This terminal has compact dimensions of 58 (H) x 8.1 (W) x 43mm (D), so it's suitable for installation in tight spaces.

What's the voltage rating of this unit?

This unit has a voltage rating of 500V, so it's safe for use in medium-power electrical systems.

SAK Series

Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
