0460560000, Weidmuller SAK Series End Cover for Use with SAK-Series Modular Terminals

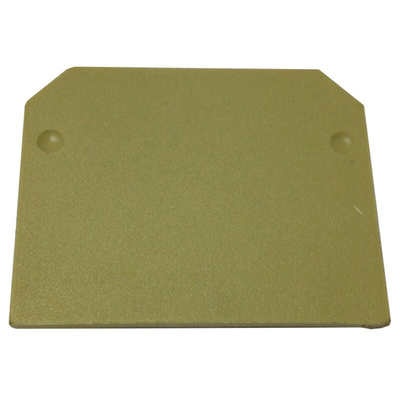

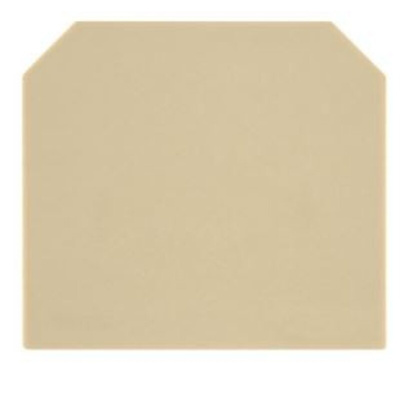

Weidmuller End Plate, 1.5mm Thickness, 39mm Height - SAK Series - AP SAK2.5+AST3+4/35 - 0460560000

When it comes to damage, ensure your system is covered with this end plate from Weidmuller. It fits snugly with terminal blocks from the SAK series to keep moisture and dust at bay, helping to ensure the optimal performance of your equipment. Thanks to its insulating PA66 body, this unit snuffs out harmful voltages in a snap. As it simply clips into place on your block, it's a breeze to install.

Features & Benefits

• Light weight of 2g to place minimal strain on your equipment
• Broad operating temperature range between -50°C and +100°C for use in demanding applications
• Slim dimensions of 39 (H) x 1.5 (W) x 31mm (D) to add minimal bulk to your block

Applications

• Control cabinets
• Manufacturing facilities
• Automated systems

What's the difference between an end plate and a partition plate?

These two types of plates both isolate voltages and can prevent lateral displacement. The difference is that end covers are used on the open end of the last block, while partition plates are placed between terminal blocks to safeguard components.

SAK Series

Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting

0460560000_AP_SAK2.5+AST3+4_35
