1880450000, Weidmuller W Series End Cover for Use with W-Series Modular Terminals

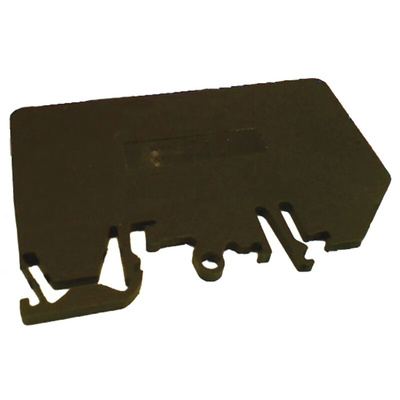

Weidmuller End Plate, Wemid Material, 6.56g Weight - W Series - WAP WSI4/2

Amp up your endgame with this end plate from Weidmuller. It attaches to the last modular terminal on your DIN rail to keep exposed electrical components under wraps. This means you don't need to worry about accidentally touching any live wires during operation. As it also stops dust, water and other contaminants from getting inside and compromising efficiency, this nifty gadget helps improve overall functionality. For added protection against fire hazards, the flame-retardant material self-extinguishes in under 10 seconds. As it's made from impact-resistant Wemid, you can expect a long service life from this hardy piece of kit.

Features & Benefits

• Wide operating temperature range between -50°C and +120°C for use in challenging conditions
• Light weight of 6.56g to place minimal strain on your rail
• Compact dimensions of just 71.12 (H) x 2.5 (W) x 49.49mm (D) to fit comfortably where space is tight

Applications

• Building management systems
• Industrial electrical installations
• Heating and air conditioning controls

Which products are compatible with this end plate?

This handy plate is designed for use with components in the W series, a collection of high-performance terminal blocks suitable for mounting on industry-standard top hat DIN rails.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
