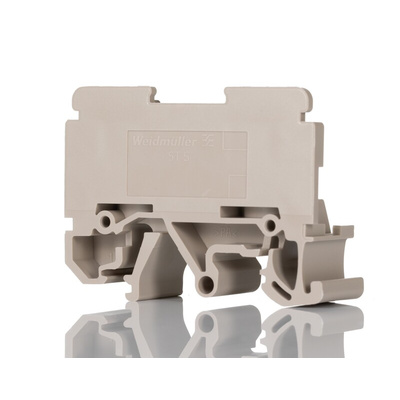

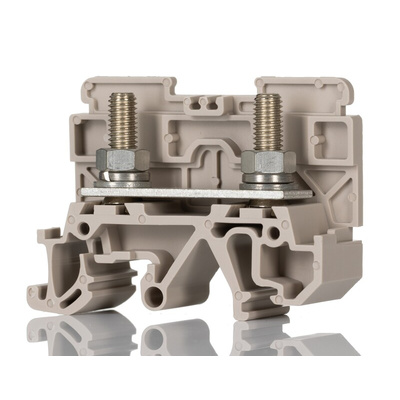

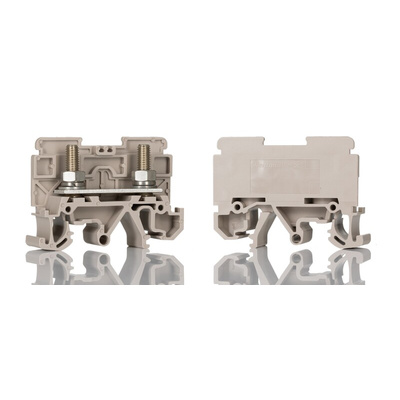

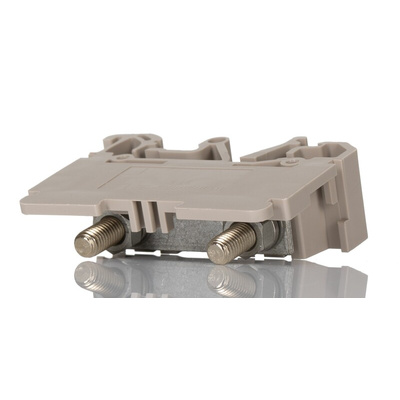

0448360000, Weidmuller ST 5 Series Dark Beige DIN Rail Terminal Block, 16mm², Single-Level, Screw Termination

Weidmuller DIN Rail Terminal Block, 76A Current Rating, 800V Voltage Rating - SAK Series - ST 5/EN

Safeguard your electrical system against power surges and short circuits with this DIN rail terminal block from Weidmuller. It's designed to clip onto an industry-standard 32 or 35mm rail to get you up and running in a jiffy. For versatility, it accommodates wire sizes between 12 and 10AWG. To connect your wires, simply feed the cable through the 16mm² cross-sectional area, which gives you plenty of room to manoeuvre.

Features & Benefits

• Flame-retardant housing means burning stops in 10 seconds or less in the event of a fire
• Wemid construction resists abrasion, impact and corrosion for a long service life
• Rated impulse withstand voltage of 8kV to prevent equipment damage from electrical surges
• Light weight of 22.6g to place minimal strain on your equipment

Applications

• Energy distribution
• Industrial automation
• Vehicle electronics

Does this DIN rail terminal block work in harsh conditions?

Yes. It delivers reliable performance in temperatures between -50°C and +120°C, so it copes well in demanding settings.

How big is this component?

The block has compact dimensions of 54.5 (H) x 16.4 (W) x 47.5mm (D) to maximise space on your rail.
