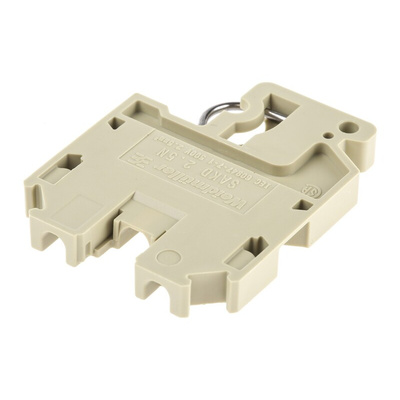

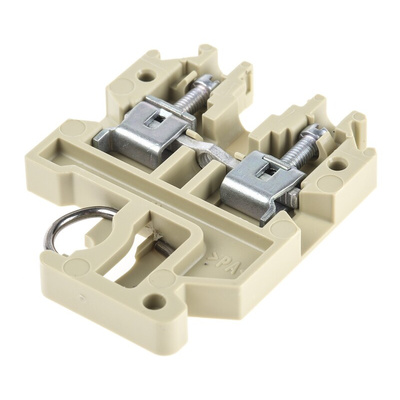

0215560000, Weidmuller SAK Series Beige Feed Through Terminal Block, 2.5mm², Single-Level, Screw Termination

SAK Series Modular Feed Through Terminals

High quality, industry standard terminals designed for mounting on symmetrical TS35 (top-hat profile) DIN Rail. With high reliability and variety of designs, the SAK series from Weidmuller make planning easier and optimise safety. The terminals are manufactured from polyamide 6.6 with a working temperature of -50°C to +100°C, and meet the requirements of IEC 60947-1.

Features and Benefits

• Steel clamping yoke for mechanical function
• Copper current bar for electrical function
• No maintenance, vibration-proof screw connection
• Low voltage drop and gas-tight contact point
• Clamping point suitable for a wide range of cross-sections
• Three different locking feet available: for TS32, TS35 or a combination of the two
• Different isolation materials: PA6.6, KrG, KrS
• Large selection of special terminals with various connection systems

SAK Series

Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting

0215560000_SAKD_2.5N
