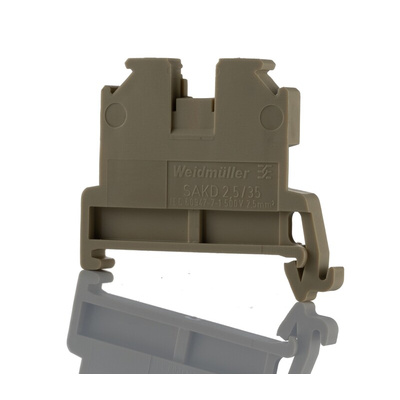

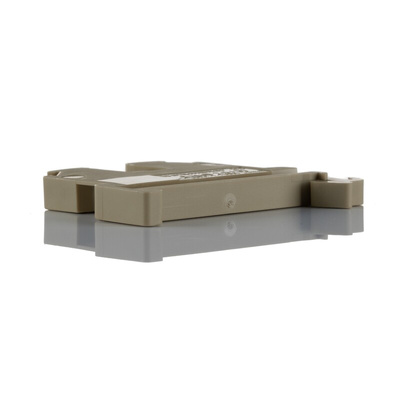

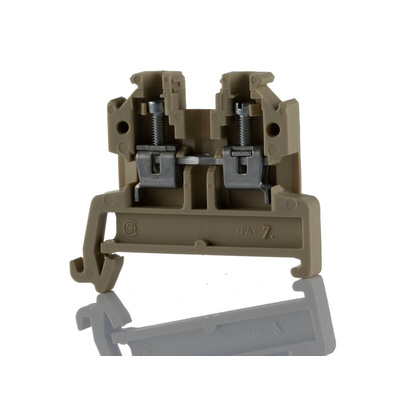

0268860000, Weidmuller SAK Series Beige Feed Through Terminal Block, 2.5mm², Single-Level, Screw Termination

Weidmuller Feed-Through Terminal Block, 24A Current Rating, 6kV Rated Impulse Withstand Voltage - SAK Series - SAKD 2.5/35

Snap extra connectivity into your control cabinet with this Weidmuller terminal block. Thanks to its handy feed-through terminals, it easily takes your wires so you can breeze through system set-up. You can put it to the test in demanding applications as it has a high current rating of 24A. Simple DIN rail mounting means the device clips securely into place on industry-standard rails to take the hassle out of installation. As it accepts wire sizes from 28 to 12AWG, this terminal block is a sure fit for many common conductors.

Features & Benefits

• Screw terminals help to minimise the risk of accidental disconnection
• Open right-side panel makes for convenient wiring access while mounted
• Compact body dimensions of 44 (H) x 5 (W) x 38mm (D) for easy installation in tight spaces

Applications

• Electronics manufacturing
• Lighting systems
• Automotive industry

Can I use this product in extreme temperatures?

This block has a broad operating temperature range between -50°C and +100°C, making it a safe bet for use in harsh industrial environments.

SAK Series

Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting

0268860000_SAKD_2.5_35
