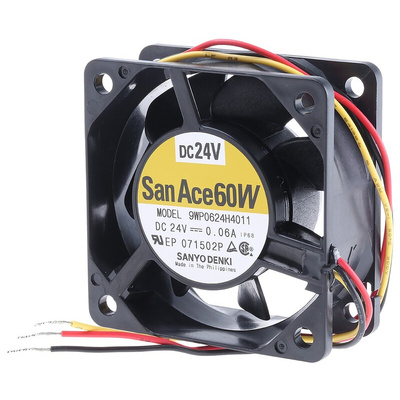

9WP0624H4011, Sanyo Denki San Ace 9WP Series Axial Fan, 24 V dc, DC Operation, 31.8m³/h, 1.44W, 60mA Max, IP68, 60 x 60 x 25mm, Вентилятор

San Ace IP68 Waterproof DC Fans - 9WP Series

San Ace IP68 fans offer protection against dust, water jets and water immersion of up to 1m.

Encapsulated motor with dual stainless steel ball bearing
Long life of 86,000 hrs (60/80mm) / 65,000 hrs (92/119mm) at 40°C ambient temp
3rd wire pulse sensor for fan status monitoring open collector two pulses per revolution
Lightweight plastic construction
Motor protection system lock rotor and reverse polarity

Sanyo Denki Axial Fan, 24V DC, 31.8m³/h Air Flow - San Ace 9WP series -9WP0624H4011

Use this axial fan from Sanyo Denki to effectively cool your machinery during operation. To ensure the safety of your equipment, the fan's frame is crafted from a high-quality, flame-retardant plastic to reduce the spread of flames in the event of a fire. This unit is an energy-efficient choice thanks to its low power consumption of 1.44W. The device has an IP68 rating, which means it can withstand dust and immersion in up to 1.5m of water for a maximum of 30 minutes.

Features & Benefits

• Compact dimensions of 60 (height) x 60 (width) x 25mm (depth) for installation in setups with limited space
• Brushless DC motor for minimal friction and energy loss
• Low sound output of 28dB for quiet operation
• Supply voltage of 24V DC for use in low-voltage applications
• Wide operating temperature range between -20°C and +70°C for use in demanding conditions

Applications

• Transformers
• Steel mills
• AC condensers

What's the expected lifespan of this fan?

This fan has a robust expected lifespan of 60,000 hours, making it a long-lasting choice.

9WP06 60mm IP68 Sanyo Denki Fan Dta Sheet

San Ace 9WP IP68 DC Fans
