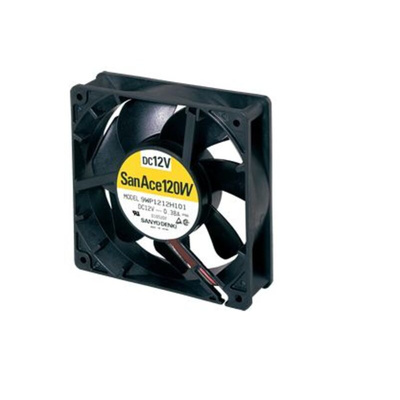

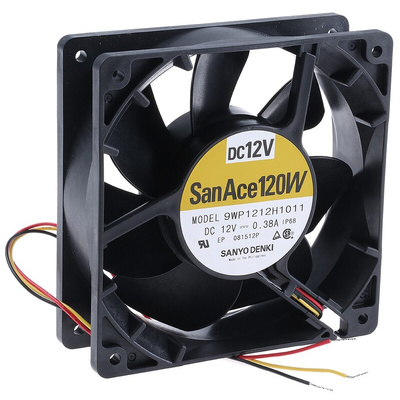

9WP1212H1011, Sanyo Denki San Ace 9WP Series Axial Fan, 12 V dc, DC Operation, 168.3m³/h, 4.56W, 380mA Max, IP68, 119 x 119 x 38mm, Вентилятор

San Ace IP55 Splash Proof Fans

IP55 axial fan for protection against dust and waterjetsEncapsulated motor with dual stainless steal ball bearingsLong life of 86,000 hrs at 40°C ambient temp3rd wire pulse sensor for fan status monitoring open collector two pulses per revolutionLightweight plastic constructionMotor protection system lock rotor and reverse polarity

Approvals

UL; CSA; TUV

Sanyo Denki Axial Fan, 39dB Noise Level, 2600rpm Fan Speed - San Ace 9WP Series - 9WP1212H1011

Need to keep your operation as cool as a cucumber? Trust this axial fan from Sanyo Denki to handle the heat. The high fan speed of 2600rpm and low power consumption of 4.56W allow for efficient and effective cooling without sacrificing performance. An IP68 rating indicates the unit is resistant to dust and immersion in water to a depth of 1.5m for up to 30 minutes, so it's a good choice for harsh environments. A tachometer sensor enables the fan to accurately measure and control the speed of the blades for a streamlined result.

Features & Benefits

• Encapsulated motor to protect against impact
• Wide operating temperature range between -20°C and +70°C for use in extreme environments

Applications

• Renewable energy systems
• Electric vehicle chargers
• LED lighting systems
• Telecommunications

How loud is this axial fan?

It has a low noise level of just 39dB, making it suitable for use in quiet environments.

How long will this axial fan last?

Since it has a lifespan of 180,000 hours at +60°C, you can trust this device to be with you for the long haul.
