7TCA296000R2176 PAFS16/BL/50M, Adaptaflex Flexible Conduit, 16mm Nominal Diameter, Plastic, Black, Кабелепровод

Adaptaflex Conduit, IP69K Rating, 35mm Minimum Bend Radius - PAFS Series - PAFS16/BL/50M

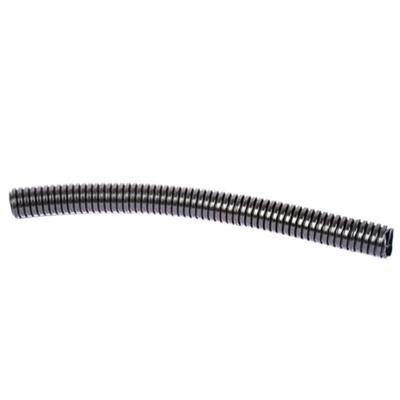

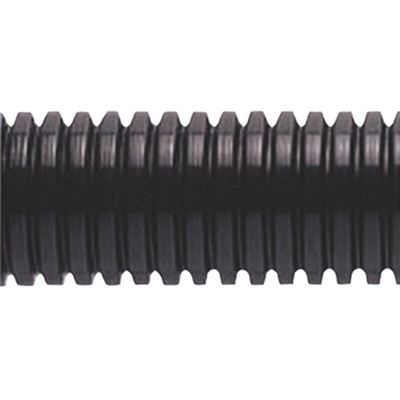

Boost the safety of your electrical wiring with this conduit from Adaptaflex. It has a hose-like shape and is made with insulating and wear-resistant polyamide 6 to provide an extra layer of protection for cables. A minimum bend radius of 35mm and durability for at least 5,000 bending cycles means you can be sure it's flexible and rugged. This makes it handy when cables don't have a straight run around buildings and machinery. Thanks to the long length of 50m you can complete large and complex installations with minimal joins.

Features & Benefits

• UV protection means you can use it indoors and out
• Flame-retardant material ensures vertical burning stops inside 60 seconds
• Heat stabilised, so it performs reliably in temperatures between -40°C and +120°C
• Good chemical resistance to substances including petrol and lubricating oil, for use with industrial machinery

Applications

• Marine and offshore settings
• Building infrastructure
• Factory floors
• Machine manufacturing

Can I use this conduit in dusty environments?

This conduit's capable of an IP69K rating after fitting, so you can achieve dust-tight cable protection that withstands high-temperature and high-pressure washdowns.

Adaptaflex PA/PI Conduit & Adaptalok®/Adaptaseal®/Adaptalok ATS® Fittings

A range of black flexible conduits and fittings to suit a wide variety of uses which include, use where public safety or where the integrity of electronic equipment are of concern or for robotic, rapid or continuous motion applications demanding high fatigue life and extra flexibility, also suited for low temperature environments.,Conduits are manufactured from modified Polyamide and are flame retardant, halogen free, have a low fire hazard (LFH) and offer resistance against chemicals and oils i.e. MEK, petrol, diesel, mineral oils, etc.,Fitting systems compatible with these Adaptaflex conduits are Adaptalok® for an IP66 rating, Adaptaseal® for an IP67 rating and Adaptalok ATS® for an IP68/69K rating.

Non Metallic Systems Data Sheet

Catalogue - Flexible Non-metallic Conduit Systems
