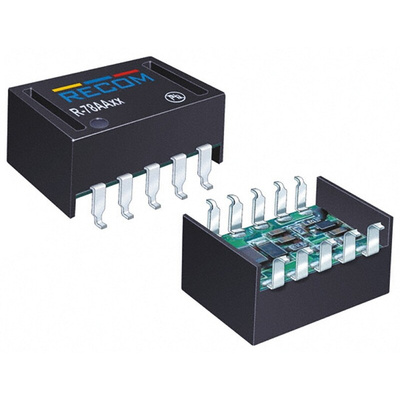

R-78AA12-0.5SMD-R, Recom Surface Mount Switching Regulator, 12V dc Output Voltage, 15 → 32V dc Input Voltage, 500mA Output Current, Импульсные стабилизаторы

8300077
Номер производителя: R-78AA12-0.5SMD-RПроизводитель: Recom
Цена за 1 катушку (250 шт)
2535.00 руб. (С НДС) *
Количество 250+ 1250+ 2500+ 6250+ 12500+
Цена 2535.00 руб. 2460.00 руб. 2385.00 руб. 2307.00 руб. 2232.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

R78AAxx-0.5SMD-R Series Full Reel Package

The Recom Power R-78AAxx-0.5SMD series of DC-DC converters feature efficiency up to 97% which means that very little energy is wasted as heat and there is no need of a heatsink. These high efficiency regulators are manufactured without lead and meet the RoHS 6/6 requirements, as well as the increased reflow soldering temperatures associated with vapour phase soldering, making these DC-DC converters perfectly suited to modern pick-and-place mass production. The Recom Power R-78AAxx-0.5SMD comes in the manufacturer standard reel package. Ideal applications of these DC-DC converters are in the battery-powered, industrial, medical and automotive markets.

RoHS 6/6 Conform (100% Lead Free)
Efficiency up to 97%
Non isolated, no need for heatsinks
High Reflow Temperature SMD Package
Adjustable Output Voltage
Wide input range
Short circuit protection, Thermal shutdown
Remote On/Off Control
UL94V-0 Package Material
Very Low Shutdown Current
Manufacturer Standard Full Reel Package

Approvals

EN-60950-1

Техническая спецификация
pdfR-78AAxx-0.5SMD Series Data Sheet
Вес:
2.7гр
Входное напряжение:
15 → 32В пост. тока
Выходной ток:
500мА
Глубина:
8.8мм
Длина:
15.3мм
Количество выходов:
1
Максимальная температура:
+85°C
Минимальная температура:
-40°C
Мощность номинальная:
0.4Вт
Напряжение выходное:
12В пост. тока
Пульсации и шум:
40мВ Pk-Pk
Регулирование в линии:
0.4%
Регулирование нагрузки:
0.4%
Среднее время безотказной работы:
29253 x 10³h
Тип монтажа:
Поверхностное крепление
Упаковка:
SMD 10
Ширина:
9.4мм
Эффективность:
97%
