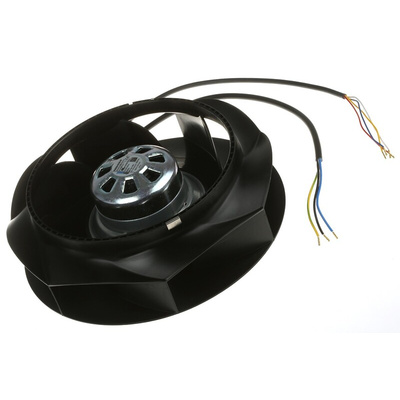

ebm-papst Centrifugal Fan
The ebm-papst single inlet centrifugal fan has an airflow of 1015m³/h (for 50Hz) at a fan speed of 2815rpm and has a supply voltage rating of 230VAC. This is integrated within the impeller reduces installation dimensions. The fan is featured with backwards-curved blades. It is an ideal solution for a wide range of applications and also suitable for intake suction use. The scroll housing is open on both the sides for added efficiency and reduction in noise level. It is 220mm wide and 71mm deep. The robust and space-saving design makes it versatile and easy to use.
Supplied with Inlet ring.
Features and Benefits
Electronically commutated motor blower with an external rotor motor
Low-pressure centrifugal solutions
Fitted with highly efficient GreenTech EC motor
Class B insulation
Material of impeller is PA plastic
Material of electronics housing is die-cast aluminium
Aerodynamic shape reduces noise emissions
Hybrid construction makes impellers highly corrosion-resistant
EC control options available
Applications
Control cabinet cooling
In-line duct fans
Home ventilation units
Heat pumps
Certifications
IP54 rated
EN 60335-1
CCC certified
