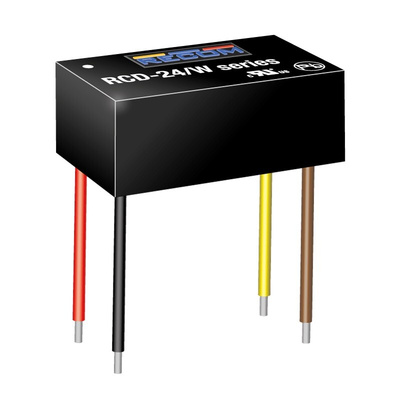

RCD-24-1.20/W/X3, Recom LED Driver, 3 → 31V dc Output, 37W Output, 1.2A Output, Constant Current Dimmable, Драйвер светодиодов

Recom RCD-24 Constant Current LED Driver - Wired with Analogue and PMW Control

Recom RCD-24 series step-down constant current LED drivers designed for driving high power white LEDs. Despite its compact size, the RCD-24 series is fully featured with very high efficiency, wide input voltage range, high ambient operating temperature and two means of dimming: PWM/digital control and analogue voltage dimming. Both dimming controls are independent and can be combined. The driver is also designed to be as reliable as the LEDs it is driving, even at the full operating temperature.

Features and Benefits

• Non-isolated

• Drives up to ten 2W power LEDs

• Constant current source

• Output current accuracy ±2%, Output current stability ±1%

• Efficiency up to 96%

• Wide input voltage range

• PWM digital and analogue voltage dimming

• Remote On/Off control pin

• 0 to 4Vdc analogue dimming

• Short circuit protection

• Compact package

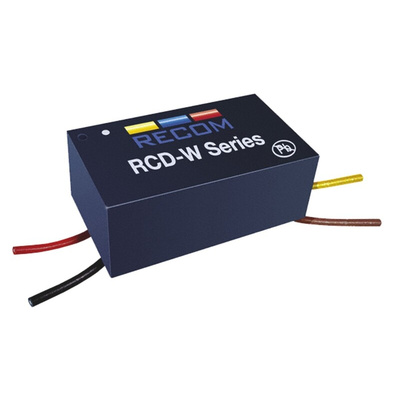

RECOM LED Driver, DC Input Type, IP67 Rating - RCD-24 Series - RCD-24-1.20/W/X3

Need a reliable power source for your LED system? Take charge with this LED driver from RECOM. Give it an input between 6 and 36V DC and it'll supply you with 3 to 31V DC and a maximum current of 1200mA. This consistency prolongs the service life of your LEDs and won't leave you in the dark. Thanks to the unit's dimming function, you can set the mood easily. Its high maximum efficiency of 96% saves you energy and makes your array more sustainable.

• IP67 rating indicates that it's dustproof and waterproof up to a depth of 1m
• Wide operating temperature range between -40°C and +65°C, so it's suitable for use in challenging conditions
• Low weight of 6.8g avoids strain on mounting surfaces
• Pulse width modulation and analogue dimming options to allow for greater functionality

Applications

• Public spaces
• Billboard backlighting
• Underwater lighting

How many units come in a pack?

For convenience, this LED driver comes in a pack of five.

Is this unit pre-wired?

The driver comes with six wires for connection to your light network.
