3403.0271.23, SchurterSMD Non Resettable Fuse 500mA, 277 V ac, 250V dc, Предохранитель

Schurter UMT 250 Fuses

Schurter UMT fuses offer primary protection on SMD PCB's. There are several applications that are suited to the performance characteristics of the UMT SMD fuse. These applications include industrial electronic, sensors, power supplies, explosion protection and lighting.

Surface Mount
High current range up to 10A
High breaking capacity
Compact design

Standards

IEC, UL, CSA

Approvals

VDE, UL

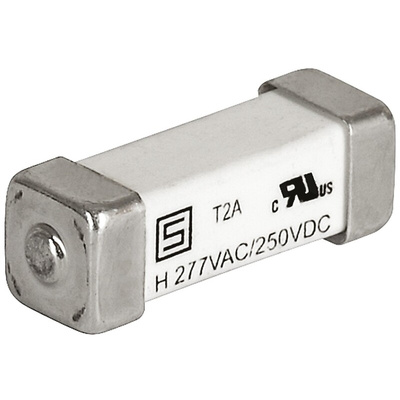

Schurter Surface Mount Ceramic Fuse

The Schurter UMT-H surface mount compact fuse has a ceramic housing and tin plated copper alloy terminal. This surface mount fuse offers considerable space saving features. Performance characteristics of the UMT SMD fuse are suitable for several low voltage applications. The FF type is ideal for protection of high value silicon ICs. This fuse has an electrical rating of 250VDC/277VAC and 500mA.

Features and Benefits

• Service temperature ranges between -55°C and 125°C
• Provides primary protection to PCB and SMD
• High Breaking capacity is 1500A

Applications

• Medical equipment
• Power supplies
• Industrial electronics
• Explosion protection

Certifications

• CSA C22.2 no. 248.14 certified
• IEC 60127-4/2 certified
• UL 248-14 approved

Surface Mount Technology

Surface mount fuses offer considerable space (and time) saving features for low voltage applications. The FF types are ideal for protection of high value silicon IC's e.g. alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, medical apparatus etc.

UMT-H type fuse Data Sheet
