Schurter SHF type fuses
Schurter SHF series cartridge fuse characterise of high breaking capacity of 1500 A and overcurrent protection up to 500 VAC. The SHF 6.3x32 series has a compact size making them ideal for primary protection of 3-phase system applications as well as a wide range of industrial applications, such as HVAC systems, photovoltaic, frequency converters, and power electronic. These cartridge fuses are offered in 10 current ratings ranging from 1 to 8A.
High breaking capacity
High rated current
Quick-Acting F
Pigtails optional
Standards
UL, CSA
Approvals
UL
Schurter Cartridge Fuse

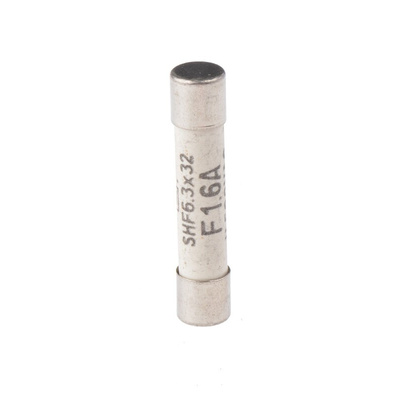

The Schurter SHF 6.3x32 cartridge fuse has a ceramic cylindrical body with 500VAC 1.6A rating. It has nickel-plated copper alloy endcaps on both sides and tin-plated copper axial leads in it. The fuse has a thermoplastic polyamide body. This cartridge fuse has characteristics like high breaking capacity and overcurrent protection.
Features and Benefits
• Breaking capacity is 1500A
• Fuse holder/clip mount type
• Melting I²t at 5.8A2s
• Operating temperature ranges between -40°C and 85°C
• Pigtails optional fuse
• Quick acting F fast blow fuse
Applications
• 3-phase systems
• Frequency convertors
• Industrial electronics
• Photovoltaic
• Power electronics
Certifications
• CSA22.2 No. 248.14
• CULus listed
• IEC 60068-1
• UL 248-14 listed
• UL File Number: E41599
All fuses have Thermoplaste Polyamide bodies
