Bi5-M18-LiU, Turck BI5 Series Inductive Barrel-Style Proximity Sensor, M18 x 1, 4 mm Detection, Analogue Output, 15 → 30 V, Индуктивный датчик приближения

BI 5 Series

A series of inductive proximity sensors, barrel type with flush mounting. These sensors are used in various applications such as the food industry, packaging & filling or frozen food. High protection classes for harsh environments. Various output types available.

Turck Proximity Sensor, Integrated Short-Circuit Protection, ≤0.5kV Isolation Test Voltage - BI5 Series - Bi5-M18-LiU

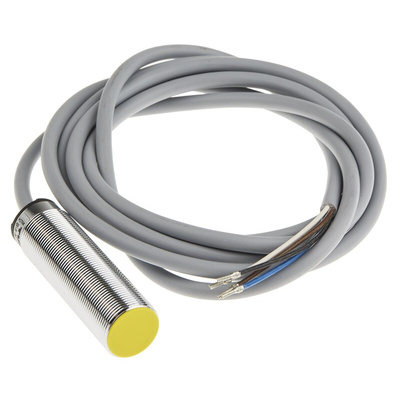

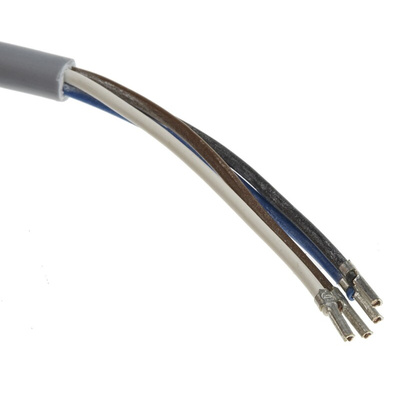

Need object detection in your mechanised kit that's right on the money? Go for this inductive proximity sensor from Turck. It picks up eddy currents emitted from metals and triggers a reaction from your equipment to keep automated activities running without a hiccup. The device comes with a 2m connection cable that's unterminated at one end to adapt to your system's design needs. A chrome-plated metal body holds out against corrosion and impact, so you can count on long-lasting service, even in harsh environments. Thanks to the sensor's standard M18 thread, assembly is a walk in the park.

Features & Benefits

• Integrated short-circuit and reverse-polarity protection ensure electrical safety
• Flush mounting method ensures it doesn't interfere with moving objects in machinery, prolonging its lifespan
• Safe to use in demanding conditions, with an operating temperature range between -25°C and +70°C

Applications

• Water treatment plants
• Marine engineering
• Medical equipment

How do I install this sensor?

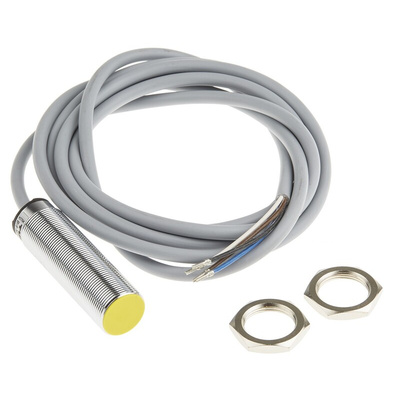

To mount this sensor, simply screw it onto the M18 port on your equipment and tighten it with a wrench. It comes with locknuts to ensure a secure fit.

Turck Banner Barrel Inductive Proximity Sensors

Inductive sensors are designed for contact-less and wear-free detection. They are the perfect solution for breweries, frozen food, dairies and packaging applications. Resistant to cleaning agents and disinfectants and exceed the protection classes IP68 & IP69K. These sensors are available as standard versions in chrome plated brass barrels or stainless steel housing with LCP front cap and double lip seal for heavy use or sudden changes in temperature. All inductive sensors of the new uprox+ generation operate with highest switching distances, feature an extended temperature range and are easily mounted.Turck inductive proximity sensors are manufactured with shielded coil, designated by “Bi” in the part number, and a non-shielded coil, designated by “Ni” in the part number.

Datasheet

Datasheet - Bi5-M18-LiU
