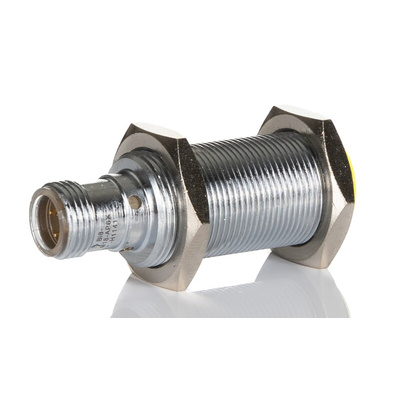

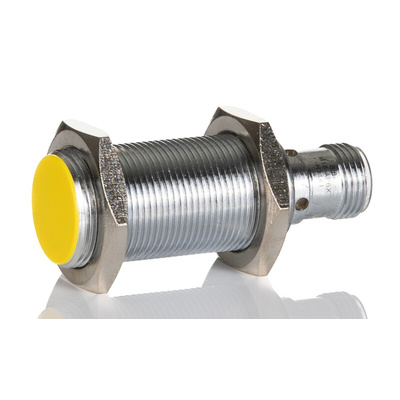

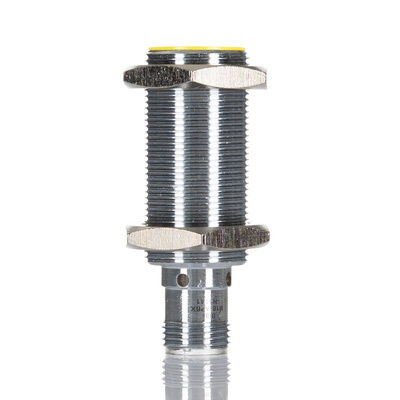

Bi8-M18-AP6X-H1141, Turck Inductive Barrel-Style Proximity Sensor, M18 x 1, 8 mm Detection, PNP Output, 10 → 30 V dc, IP67, Индуктивный датчик приближения

Turck Proximity Sensor, Flush Mounting, 8mm Detection Range - Bi8-M18 Series - Bi8-M18-AP6X-H1141

Keep a close eye on metal objects in your system using this proximity sensor from Turck. When an object enters its magnetic field, the device sends a signal to alert you in a jiffy. This versatile unit detects iron, brass, copper and aluminium. Its MTTF of 2,283 years at +40°C means you can count on it for the long haul. Monitoring this component is a breeze thanks to its yellow LED status indicator.

Features & Benefits

• Light weight of 48g to place minimal strain on your setup
• Chrome-plated brass housing provides resistance to corrosion and wear
• IP67 rating assures you it's dustproof and protected against submersion in 1m of water for up to 30 minutes
• Low current consumption of up to 200mA for energy efficiency

Applications

• Inspection and quality assurance
• Food manufacturing
• Transportation sector

Can I use this sensor in harsh conditions?

Yes, this proximity sensor has a broad operating temperature range between -25°C and +70°C to withstand use in demanding environments.

What's the detection range of this unit?

This sensor detects movement in a narrow range of 8mm, so it's especially suitable for sensing in confined areas.

Turck Banner Barrel Inductive Proximity Sensors

Inductive sensors are designed for contact-less and wear-free detection. They are the perfect solution for breweries, frozen food, dairies and packaging applications. Resistant to cleaning agents and disinfectants and exceed the protection classes IP68 & IP69K. These sensors are available as standard versions in chrome plated brass barrels or stainless steel housing with LCP front cap and double lip seal for heavy use or sudden changes in temperature. All inductive sensors of the new uprox+ generation operate with highest switching distances, feature an extended temperature range and are easily mounted.Turck inductive proximity sensors are manufactured with shielded coil, designated by “Bi” in the part number, and a non-shielded coil, designated by “Ni” in the part number.

Datasheet

Datasheet - Bi8-M18-AP6X-H1141
