MT-8200-60-KIT, Fluke Networks Cable Tester, IntelliTone™ Pro 200

Fluke Networks IntelliTone™ Pro 200 LAN Toner and Probe Kit

This toner and probe kit is ideal for quickly locating cables and individual pairs with the SmartTone analog function, safely and effectively on active networks.

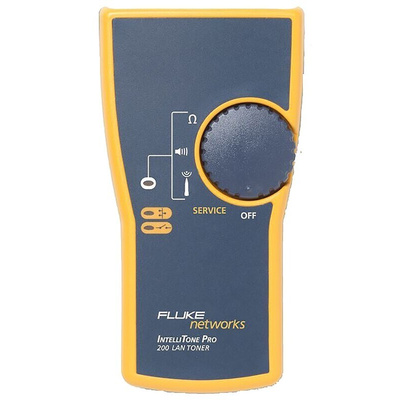

Cutting-edge tester technology provides advanced digital and analog cable location and high-resolution measurement, via the breakthrough solution that is IntelliTone™. This solution allows the most elusive, hidden or bundled voice/audio, data and video cables and wire pairs to be located and isolated quickly and reliably, even on active networks. All of this in one tool which has been designed for ease of use, featuring a thumbwheel switch, LED display and auto power down with a hard robust exterior.

The advantages on using this kit include overcoming noise, save hours of work time whilst being able to locate cables efficiently and safely, eliminating the need for multiple testing.

Features and Benefits:

• Reject noise and false signals
• Locate the correct cable bundle
• Isolate a cable within the bundle, despite cable bleed
• Tests for continuity
• Identify and diagnose 10/100/1 Gb Ethernet link connectivity with NIC / hub indication
• Identify individual wire pairs with new SmartTone™ analog tuning

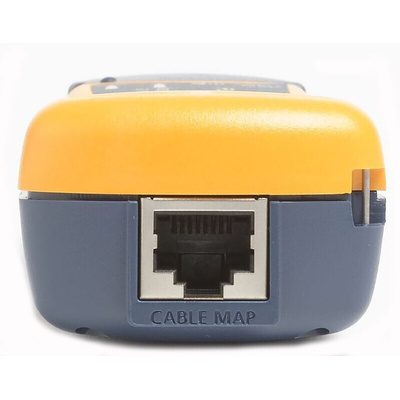

• Verification on twisted-pair installation with CableMap capability which identifies common cable miswire

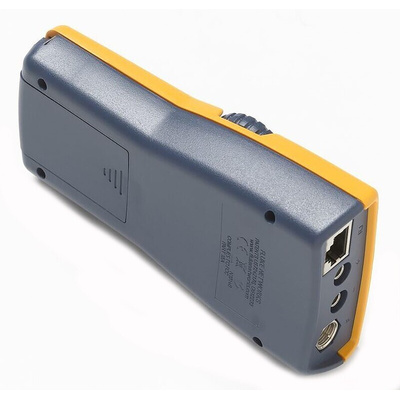

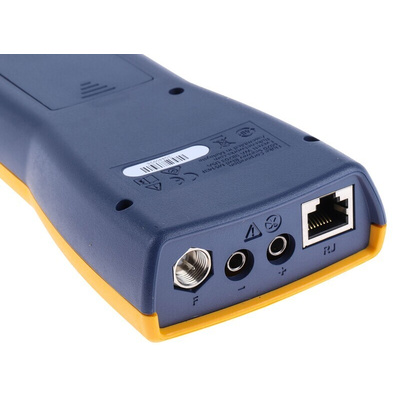

Interface includes: Main Mod8 port for tone generation on all 4 pairs of UTP/STP cabling, F Connector for coaxial cabling, 2 x Banana jack plugs.

What is IntelliTone™ technology?

This technology is cutting-edge, it zeroes in on cables with a digital signal-toning and signal-interpreting process. Using a smart, synchronised digital signal it energises cable conductors. Multiple tone types are used in the signal which helps to locate the correct cable bundle, Isolate a cable within a bundle and Verify cable conductor continuity.

Typical Applications

This cable toner and probe offers digital and analog signaling in one network toner and probe. The digital mode can trace and locate data cabling safely and effectively on active networks. The analog mode can be used to isolate individual wire pairs and trace voice, audio and video cabling. Applications include:
Copper cabling media, including shielded (STP) and UTP cable
75 or 50 Ohm coaxial cable
Two conductor control
Security
Generic cabling

Supplied with

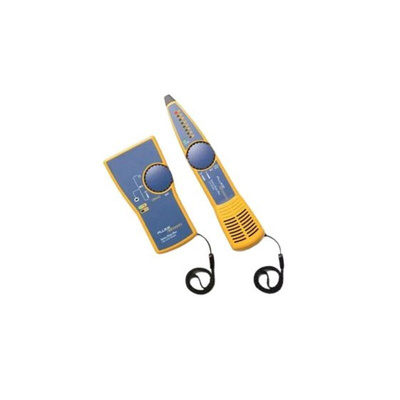

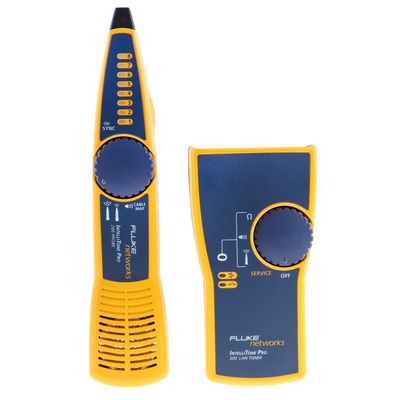

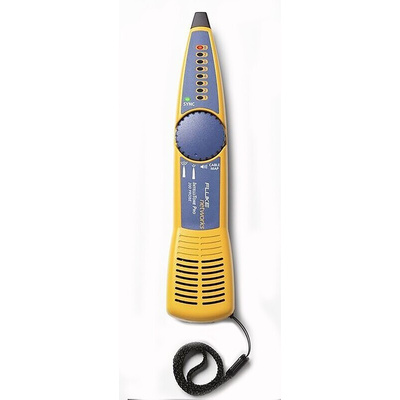

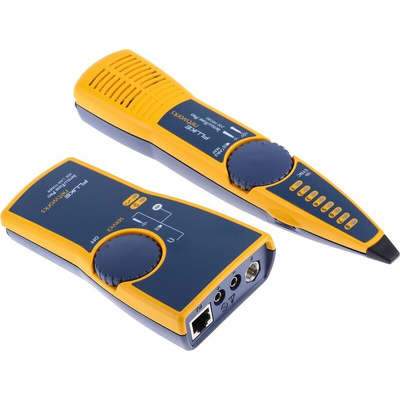

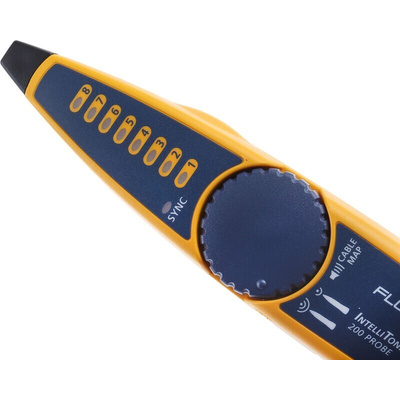

IntelliTone 200 LAN Toner and 200 Probe, coax F connector adapter, 2 x RJ11 and 2 x RJ45 patch cables, test leads with alligator clips, 2 x lanyards, quick start guide, 2 x 9 volt batteries.

FLUKE Toner and Probe Kit, LED Display, PP3 Battery - IntelliTone Pro 200 Series - MT-8200-60-KIT

Tired of searching for cables in a complex network? With this toner and probe kit from FLUKE, you can zero in on your target and avoid hours of hunting. It's a handy tool for cable location that allows you to quickly find the bundle you're looking for, isolate a specific wire and verify its status. As the device cuts through electrical noise and rejects false positives, you won't waste valuable time chasing red herrings.

Features & Benefits

• Digital and analogue signalling in one handy package
• 20 hours of battery life, so you don't run of of juice mid-shift
• LED display for user-friendly interpretation of results
• Compact dimensions of 141 (L) x 75 (W) x 32mm (H) for toner and 222 (L) x 48 (W) x 32mm (H) for probe, so it's highly portable

Applications

• IT network installation
• Industrial data networks
• Electrical engineering

What accessories are supplied with this toner and probe kit?

The accessory pack includes test leads with alligator clips, a coax F connector adapter, 2x RJ11 and 2x RJ45 patch cables as well as 2x 9V batteries. This means you can get started quickly, right out the box.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

Users Manual IntelliTone™ Pro 200 LAN Toner and 200 Probe

Datasheet
