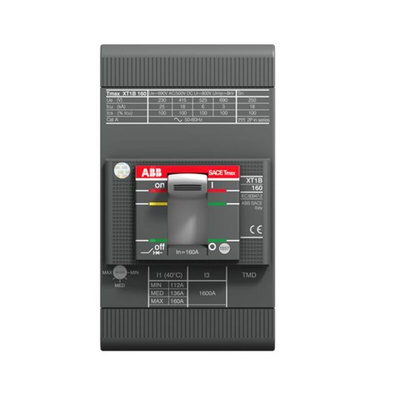

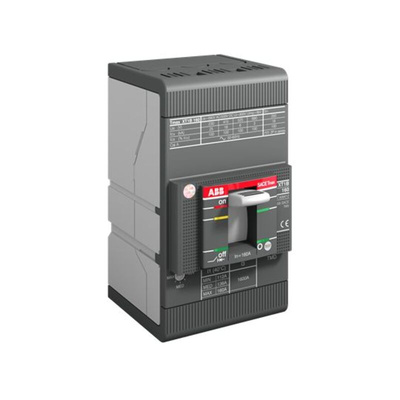

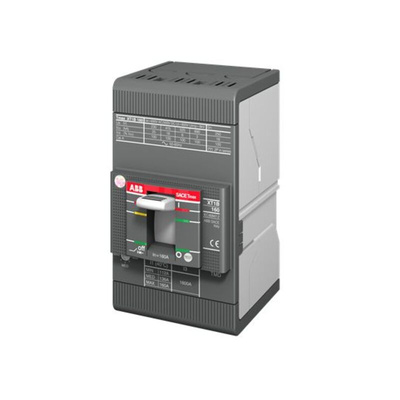

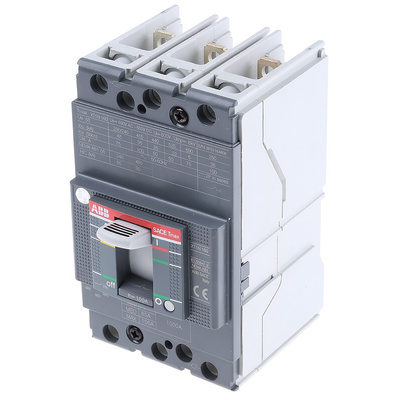

1SDA067416R1 XT1N 160 TMD 100-1000 3p F F, ABB, Tmax XT MCCB 3P 100A, Breaking Capacity 36 kA, Panel Mount

ABB MCCB, 690V AC Voltage Rating, 130mm Width - XT1N Series - 1SDA067416R1

Stamp out electrical faults quickly with this 3-pole MCCB from ABB. It uses a thermomagnetic release to protect equipment from overloads and short circuits. A 15ms opening time means it has a lightning-quick reaction to prevent damage. As the device works with AC and DC circuits and has an adjustable threshold between 70 and 100A, it's a versatile option. Thanks to a maximum voltage rating of 690V and a breaking capacity of 36kA at 500V DC, it's capable of safeguarding high-power applications.

Features & Benefits

• Toggle switch with red and green indicators makes positioning clear as can be
• Mechanical durability of 25,000 operations, so you can be sure of a long service life
• Test button enables you to check it's functioning correctly

Applications

• Power distribution
• Motor and generator protection
• Energy management
• Industrial machines

Where can I mount this MCCB?

It's mountable on surfaces horizontally or vertically, including switchgear panels and distribution boards, so you have plenty of options.

What size is this MCCB?

It has a compact frame size of 76.2 (L) x 130 (W) x 70mm (D) to save you space.
