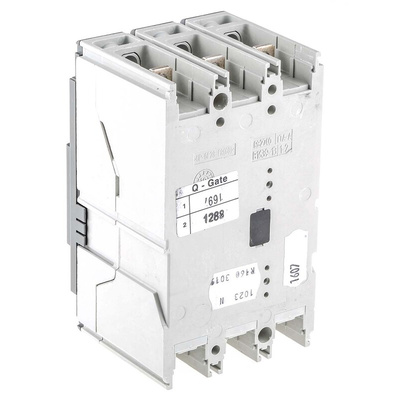

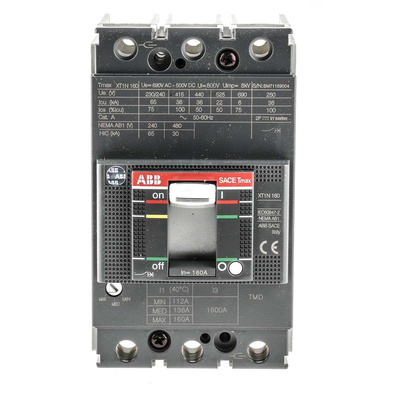

1SDA067418R1 XT1N 160 TMD 160-1600 3p F F, ABB, Protecta MCCB 3P 160A, Breaking Capacity 36 kA, DIN Rail Mount

ABB MCCB, 800V Rated Insulation Voltage, Front Terminal Connection - XT1N Series - 1SDA067418R1 XT1N 160 TMD 160-1600 3p F F

Looking for a reliable protection device for your heavy-duty electrical system? Go for this MCCB from ABB. Thanks to a current rating of 160A, you can rest assured that it handles large-scale industrial equipment without breaking a sweat. The device steps in during faults like short circuits and overloads, cutting power to prevent damage to downstream appliances. Its moulded case provides insulation to both its internal components and the user, meaning there's no risk of getting a shock when you're touching or operating it. As it tips the scales at just 1.094kg, this product is easy to handle during installation.

Features & Benefits

• DIN rail mounting style is simple and doesn't need complex tools, saving time and hassle
• Compact dimensions of 70 (L) x 76.2 (W) x 130mm (H) make it a space-saving choice for tight setups
• Red and green contact position indicators for easy monitoring during operation

Applications

• Power distribution systems
• Photovoltaic circuits
• Industrial motors

What do I do when this MCCB trips?

When this MCCB trips, you must find the source of the fault and resolve it before you reset the device using the front-facing lever.
