Bi4-M12-AP6X, Turck Inductive Barrel-Style Proximity Sensor, M12 x 1, 4 mm Detection, PNP Output, 10 → 30 V dc, IP67, Индуктивный датчик приближения

8320977
Номер производителя: Bi4-M12-AP6XПроизводитель: Turck
Цена за шт.
36621.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

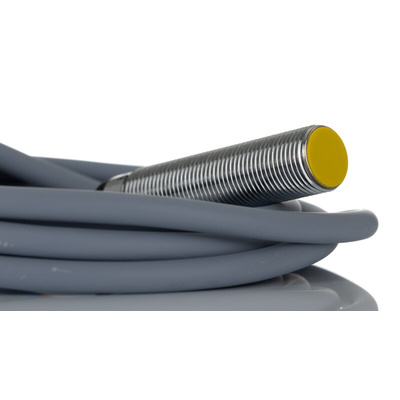

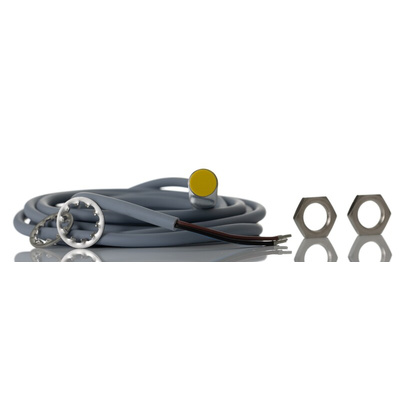

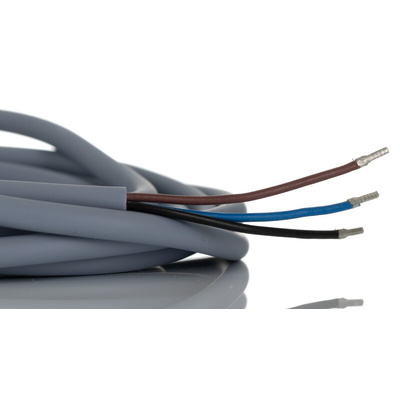

Turck Proximity Sensor, Flush Mounting Type, 4mm Detection Range - BI 4 Series - Bi4-M12-AP6X

Need a way to keep track of objects in your industrial environment? This proximity sensor from Turck is just the tool for the job. As it's inductive, it generates an electromagnetic field that reacts to metals like aluminium, copper, brass and iron. Thanks to its short detection range of 4mm, it's a safe bet for your close-range monitoring tasks. A built-in LED indicator shows its status, so you can tell when it's on in a flash. Its flush mounting design means it stays flat in your panel, so you're less likely to bump into it and interfere with its operation.

Features & Benefits

• Chrome-plated brass housing for resistance to impact and corrosion
• Partial shielding helps block EMI for clear signal delivery
• Supply voltage range between 10 and 30V DC for use in low-power systems

Applications

• Supply chain networks
• Agricultural equipment
• Conveyor systems

What protective features does this sensor have?

This sensor comes with combined protection against reverse polarity and short circuits to help keep it safe from electrical hazards in the event of a faulty current.

Turck Banner Barrel Inductive Proximity Sensors

Inductive sensors are designed for contact-less and wear-free detection. They are the perfect solution for breweries, frozen food, dairies and packaging applications. Resistant to cleaning agents and disinfectants and exceed the protection classes IP68 & IP69K. These sensors are available as standard versions in chrome plated brass barrels or stainless steel housing with LCP front cap and double lip seal for heavy use or sudden changes in temperature. All inductive sensors of the new uprox+ generation operate with highest switching distances, feature an extended temperature range and are easily mounted.Turck inductive proximity sensors are manufactured with shielded coil, designated by “Bi” in the part number, and a non-shielded coil, designated by “Ni” in the part number.

Техническая спецификация
pdfDatasheet
pdfDatasheet - Bi4 - M12 - AP6X
pdfCatalogue - Sensors
Вид корпуса:
Бочковидный
Диапазон обнаружения:
4 мм
Длина:
50мм
Защита от короткого перегрузочного замыкания:
Да
Защита от обратной полярности:
Да
Коммутируемый ток:
200 мА
Максимальная частота переключений:
2кГц
Максимальное напряжение постоянного тока:
30В
Материал корпуса:
Хромированная латунь
Напряжение питания:
10 → 30 В пост. тока
Рабочая температура - максимальная:
+70°C
Рабочая температура - минимальная:
-25°C
Размер резьбы:
M12 x 1
Степень защиты IP:
IP67
Технология датчика:
Индуктивный
Тип выхода:
PNP
Тип клеммы:
Кабель
Тип монтажа:
Заподлицо
Частота переключений:
2 кГц
Экранирование:
Частичное
