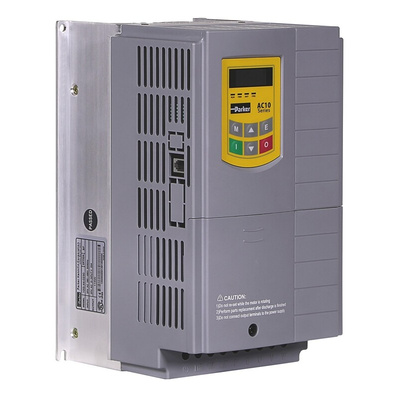

10G-45-0320-BF, Parker AC10 Inverter Drive, 3-Phase In, 0.5 → 650Hz Out, 15 kW, 400 V, 52 A

8325354
Номер производителя: 10G-45-0320-BFПроизводитель: Parker
Цена за шт.
359160.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

AC10 Three Phase Inverter

Parker AC10 compact inverter drive has been designed with simplicity in mind. The AC10 drive series is a reliable and economical solution to routine daily motor torque & speed control applications. The compact nature of the drives come equipped with features usually common within bulky, premium models providing the user with an economical drive solution without compromising on features or quality

Offered in various power ratings ranging from 0.2kW to 22kW single & three phase with integral EMC filter
Conformally coated PCBs and refined manufacturing techniques ensure consistently outstanding levels of performance day in, day out
Simple installation requirements with minimal wiring and easily accessable terminal rails needed to get up and running
Intricate tuning for greater dynamic speed or torque control is made easy thanks to the auto-tuning sensorless vector mode. In addition to the convenience of the setup users can reap the benefits of enhanced speed & torque accuracy

In addition to the simple installation of the AC10 series of inverters they also come supplied with integrated macros for various applications. These macros include simple speed control & presets, raise / lower, manual / auto control, PID control and many more

Typical applications include:
Conveyors
Fans
Mixers
Packaging machines
Textiles machines
Barriers

Note

A remote keypad and lead set is available, providing customisation & monitoring remotely from the drive with all the functionality of the panel on the inverter itself. For more information please see stock number 832-5360
Parker also provide a free configuration & diagnostic PC suite to accompany this series of drives, allowing import, export and modification of drive parameters & control. For more information and download please visit the manufacturer website

Standards

Conformal coating adheres to Class 3C3 environments

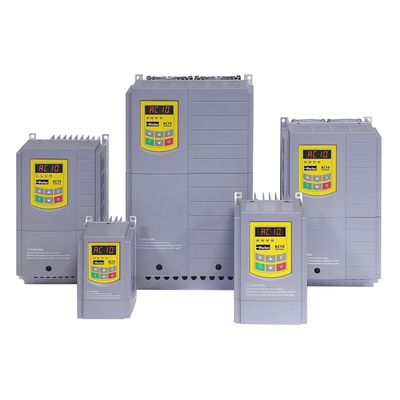

Parker AC10 Range

Техническая спецификация
pdfAC10 Variable Speed Drive - Product Manual
pdfAC10 Variable Speed Drive - Data Sheet
Выходная частота:
0.5 → 650Гц
Габаритная ширина:
196мм
Длина общая:
205мм
Мощность номинальная:
15 кВт
Напряжение питания:
400 В
Номинал тока:
52 A
Общая глубина:
340мм
Панель управления:
Да
Серия:
AC10
Степень защиты IP:
IP20
Температура окружающей среды:
-10 → +40°C
Тип связи полевой шины:
RS485 ModBus
Фаза:
3
Фильтр в комплекте:
Да
