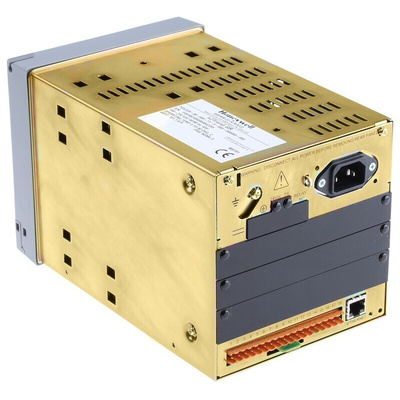

TVEZGR-30-000-11-0-000-000000-000, Honeywell 43-TV-03-18, 3 Channel, Graphic Recorder Measures Current, Resistance, Temperature, Voltage, Диаграммный самописец

8332793
Номер производителя: TVEZGR-30-000-11-0-000-000000-000Производитель: Honeywell
Цена за шт.
764850.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

eZrend GR

eZtrend GR from Honeywell is a cost-effective, general purpose DIN size electronic data recorder that easily replaces 100 mm paper strip chart recorders. Doing so, enables you to capture continuous and batch data electronically. Data is recorded in a secure digital format, eliminating interpolation errors that can arise from transposing data from a chart to a spreadsheet for analysis.
The chart recorder reliably records electronic data in a secure format from directly connected sensors or transmitters.
The eZtrend GR creates encrypted data files that can only be read and analysed using the TrendManager Pro software tools to ensure data integrity.

5.7” Digital Colour LCD (TFT)
QVGA Resolution (320 x 240 pixels)
Clear and intuitive operation
Industrial rugged Touch Screen with rapid navigation

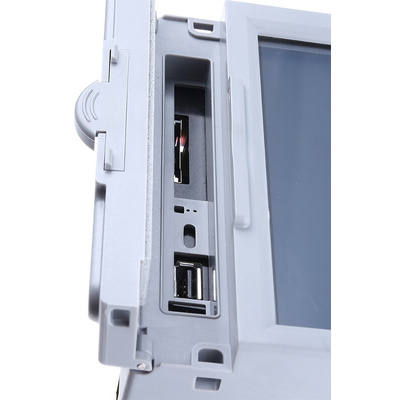

Front USB port as standard for keyboard and mouse.
1 GB on-board non-volatile memory
Removable USB storage
No moving parts, all solid-state Flash memory
Password Protection
ESS - Extended Security System
Health Watch for preventative maintenance
Independent Chart and Logging speeds
Rapid review and replay of data at recorder
Credits available for ordering firmware options

Credits available for ordering firmware options

5 credits- 833-2807
10 credits- 833-2816
20 credits- 833-2819

Техническая спецификация
pdfGraphic Recorder eZtrend GR - Data Sheet
pdfContains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4
Вес:
2.4кг
Высота:
144мм
Длина:
200мм
Измерение максимального напряжения:
50В пост. тока
Измерение максимального сопротивления:
0 → 4000Ω
Измерение максимальной температуры:
+100 (G) °C, +100 (N) °C, +1000 (E) °C, +1000 (S) °C, +1200 (J) °C, +1220 (C) °C, +1300 (N) °C, +1372 (K) °C, +1390 (P) °C, +1410 (M) °C, +1515 (G) °C, +1768 (R) °C, +1768 (S) °C, +180 (100 hm Nickel) °C, +180 (C) °C, +180 (D) °C, +1816 (B) °C, +1840 (D)
Измеряемый параметр:
Ток, Сопротивление, Температура, Напряжение
Источник питания:
Сеть
Количество входов:
3
Количество выходов:
8
Лучшая точность измерения сопротивления:
±0.1 %
Лучшая точность измерения температуры:
±0.3 (Type 120 ohm Nickel) %, ±0.5 (Type 100 ohm Nickel) %, ±0.6 (Type Chromel/Copel) %, ±0.6 (Type PT100) %, ±0.6 (Type PT1000) %, ±0.6 (Type PT200) %, ±0.6 (Type PT500) %, ±0.7 (Type E) %, ±0.7 (Type J) %, ±0.7 (Type L) %, ±0.8 (Type M) %, ±1 (Type K) %
Лучшая точность измерения тока:
±0.2 %
Лучший тояность измерения напряжения:
±0.1 %, ±0.2 %
Максимальное рабочее напряжение:
250В перем. тока
Максимальный ток измерения:
20мА
Минимальное рабочее напряжение:
100В перем. тока
Модель р:
43-TV-03-18
Степень защиты IP:
IP54
Тип вилки:
IEC Power Plug, US Power Cord
Тип входного регистратора:
MV,V,мА,Термопара,RTD,O
Тип диаграммы:
Graphical
Ширина:
144мм
