RS PRO Green Panel Mount Indicator, 110V dc, 14mm Mounting Hole Size, IP67, Индикатор

RS PRO Green Indicator, 110 V DC, 14 mm Mounting Hole Size, Solder Lug Termination, IP67

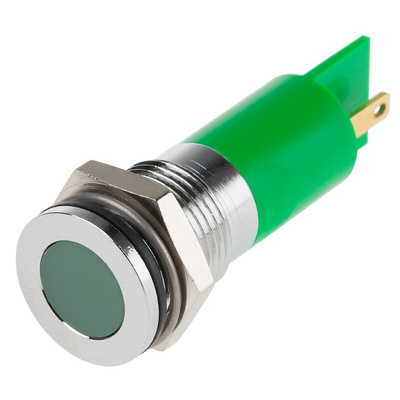

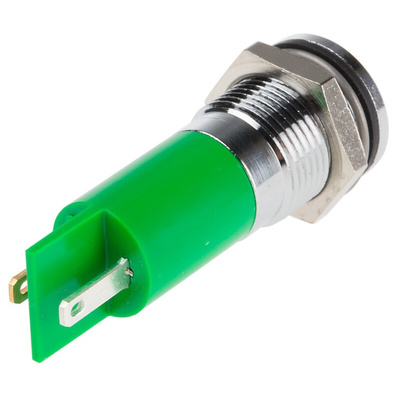

Use this green LED indicator from the RS PRO range to signal the operating status of your industrial machinery or equipment. It's quick and easy to install or remove. Just insert the FASTON solder lug-type terminals into your panel and fasten them with the supplied fixing nuts and washers.


This indicator has an IP67 rating, meaning it's completely sealed against dust and can withstand submsersion in up to 1 m of water. It also has an operating temperature range of -40°C to +85°C, so it's suitable for outdoor use, as well as for harsh industrial environments.


The product is part of our trusted RS PRO range, so it's been thoroughly tested for quality and durability. Indicators like this one are commonly used with professional electrical appliances, process controls and energy management applications.

Features and Benefits

• Chrome bezel in a flush style


• Current rating of 6 mA


• Length of 34.1 mm


• Mounting hole size of 14 mm


• Intensity of 5 mcd


• Voltage rating of 110 V DC


• Restriction of Hazardous Substances (RoHS) compliant
