BEL POWER SOLUTIONS INC Embedded Switch Mode Power Supply

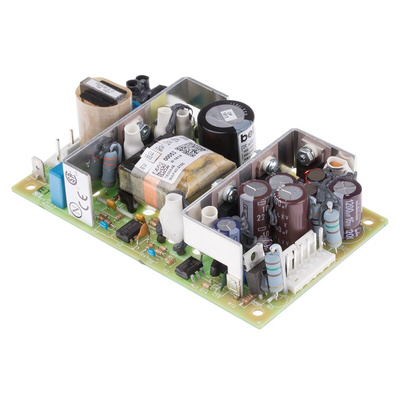

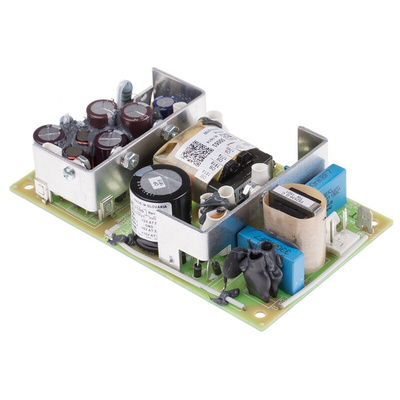

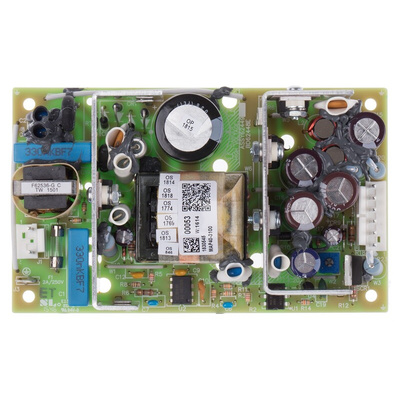

The BEL POWER SOLUTIONS INC embedded switch-mode power supply from the MAP30/40/42 series is a 40W rated, AC to DC plug-in device with 3 outputs. It has a fixed frequency operation that simplifies system-level operation. The device is configured to the international standard 3.00in width and 5.00in length footprint. The input and output connections are made via popular single-row Molex connectors. It has a compact design and universal input supply voltage rating range from 90VAC to 264VAC.
Features and Benefits
Chassis mount
Greater than 311,000 hours MTBF
Low voltage directive
Open frame package type
Output currents are 3A at 5VDC, 2A at 12VDC and 0.3A at -12VDC
Remote sense (MAP30, MAP42)
Applications
Commercial requirements
Industrial
Certifications
CE certified
EN55022 (conducted and radiated limits)
EN60950-1
EN61000-4-2/-3/-4 (input transient and ESD compliance)
MAP30/40/42 AC-DC Series Data Sheet| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
