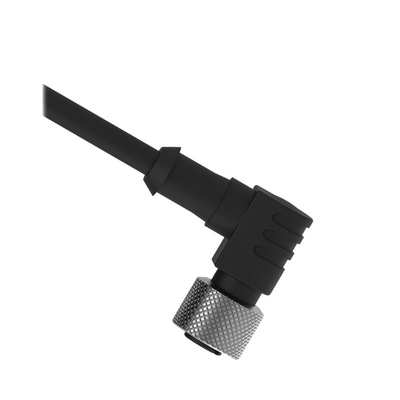

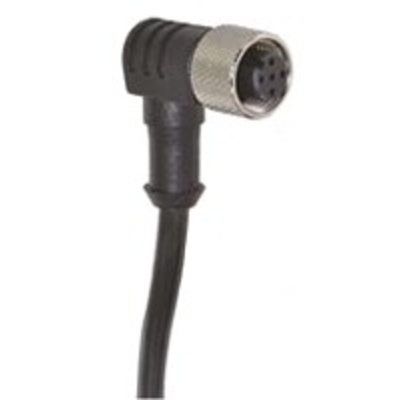

MQDC-415RA, Banner Right Angle Female 4 way M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

Banner Sensor Actuator Cable, PVC Jacket Material, 22AWG Wire Size - MQDC Series -MQDC-415RA

For smooth transmission of data and signals between your electronic devices, reach for this sensor actuator cable from Banner. It features a female M12 connector that leads to an unterminated end, giving you a free hand when you want to connect it to your circuit. Thanks to its right-angle design, it comes in handy in corners and awkward spaces. A robust nickel-plated brass coupling nut on the connector locks the cable down, keeping a tight grip on things for reliable performance in vibrating conditions.

• Tough PVC outer jacket is self-extinguishing for safety in the event of a fire
• IP68 rating means it's dust-tight and can withstand submersion in 1.5m of water for up to 30 minutes

Applications

• Server rooms
• Telecommunications
• Office buildings
• Medical technology
• Manufacturing industry

How long is this cable?

This cable has a generous length of 5m, so it can close the gap between machines that are far apart.

How flexible is this cable?

This cable has a minimum bend radius that's over 10 times its outside diameter, so it doesn't snap under pressure.

Cordset & Cable Connector Female

New product line from Turck Banner, eurofast®, picofast®, pentafast® and microfast® cordsets.
These industrial connectivity products are available as angled or straight configuration with choices of M5, M8, M12, M16, M23 or 1/2" 20 UNF connection.
A combination of female, male, female to male and male to female gender plus various cable lengths ensure the user can select the right cordset for their application.

Datasheet - MQDC-415RA

Brochure - Snap Signal
