RS PRO Brushed Geared DC Geared Motor, 7 W, 12 V dc, 59 Ncm, 60 rpm, 6mm Shaft Diameter, Двигатель

35mm Noise Attenuated Spur Geared Motors - 950D Series

Premium materials boasting high quality construction for use within heavy duty environments
35mm noise attenuated spur geared motors
Sleeve output bearings
Metal housing material

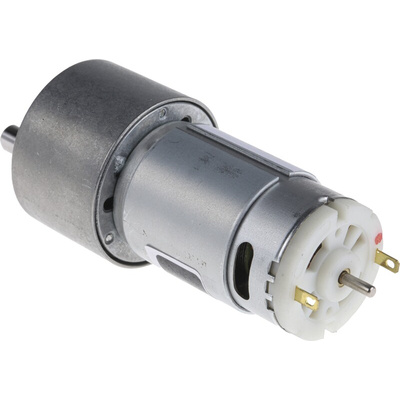

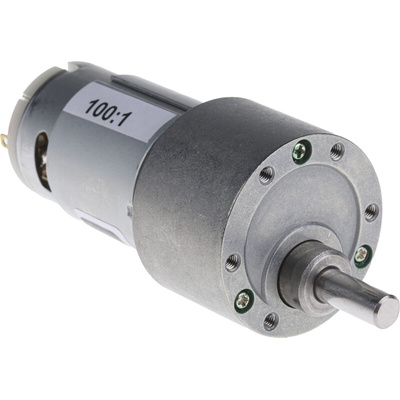

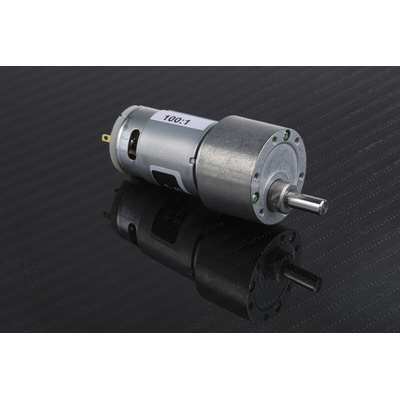

RS Pro Noise Attenuated DC Geared Motor- 950D Series

From RS Pro, this DC geared motor is ideal for low speed applications that require high starting torque. The brushed motor ensure a low cost and simplified design, while offering versatility and reliability.

A robust unit with a high quality five pole motor, this DC motor has a spur gearbox, with sleeve output bearings that facilitate high torque transfer from the motor through the gearbox.

The gear motor is mounted to a steel bracket, for easy and secure installation, and is designed for most low voltage applications, providing a 60 rpm no-load speed.

Features and Benefits

• 12 V dc Supply Voltage


• Sleeve output bearings


• Significant noise reduction compared to similar models


• Spur gear head


• 6V produces a speed of 32 rpm, while 12V increases the speed to 72 rpm

Applications

DC geared motors are highly versatile, and are used in many appliances and technologies. Whether you're a hobbyist or industrial manufacturer, DC electric motors can be used to provide any number of practical solutions, and are often used in;

• Power tools


• Water pumps


• Camera Systems


• Adjusting devices


• Robotics


• Fans

What's the Difference Between Brushed and Brushless DC Motors?

Electric motors that use a brush to deliver current to the motor windings have a simpler construction than their brushless equivalents, and are therefore usually lower in cost. They are also able to be wired directly to a DC power source, and have no need for an encoder or drive, which results in more simplified wiring options.

Unfortunately, wear and tear on the brush element means a shorter service life and less efficiency. They are also typically noisier than brushless DC motors, though this particular model has been desinged with noise reduction in mind.

Why RS Pro?

RS Pro strives to provide you with the choice and reliability you need in your component purchasing. From designing prototypes to finding reliable maintenance solutions, RS Pro can furnish you with the parts you need, when you need them.

Providing high-quality hardware tested by our in-house experts, RS Pro offers you an assurance of quality at competitive prices.

At every stage of the design and manufacturing process, RS Pro is there to support you.

Техническая спецификация
Datasheet
950DLN Series Datasheet
RS PRO Datasheet
