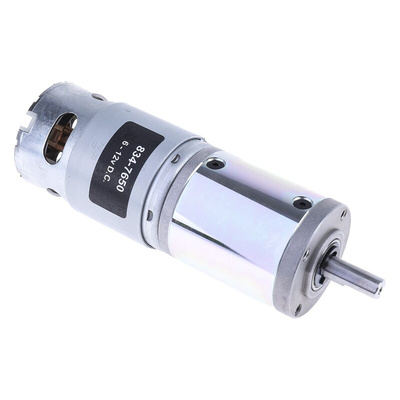

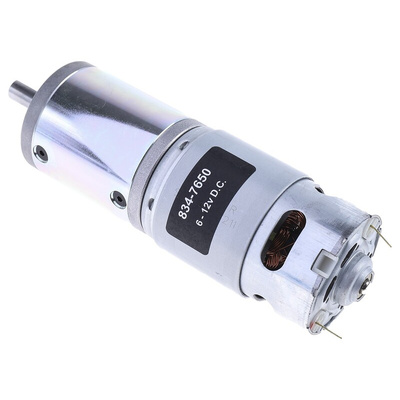

RS PRO Brushed Geared DC Geared Motor, 41.3 W, 12 V dc, 2.5 Nm, 27 rpm, 8mm Shaft Diameter, Двигатель

RS PRO Brushed DC Geared Motor, 41.3 W, 12 V, 2.5 Nm, 27 rpm, 8 mm Shaft Diameter

This brushed geared DC motor from RS PRO is designed for powering smaller tools and appliances simply and efficiently. It converts DC electrical energy into mechanical energy quietly and with minimal vibration, so you won't be disturbed while working. Motors such as this one are used in many different industries, including printing and laser optics applications.


This motor is easily installed and simply needs wiring into your circuit. The tough iron core construction means it can tolerate regular use in harsh environments for a long time. It comes with a planetary gearhead with bronze output bearings, which assures you a high torque transfer from the motor through the gearbox.


Motors such as this one are well-suited to low-speed applications where a high starting torque is required. You'll find it used with water pumps, robotics and prototyping equipment.

Features and Benefits

• Iron core construction


• Current rating of 5.5 A


• Brushed geared DC motor type


• Planetary gear head type


• Length of 118.6 mm


• Width of 44.6 mm


• Shaft diameter of 8 mm


• Maximum output torque of 2.5 Nm (Newton metres)


• Output speed of 27 rpm (revolutions per minute)


• Power rating of 41.3 W


• Supply voltage of 12 V

RS PRO Datasheet
