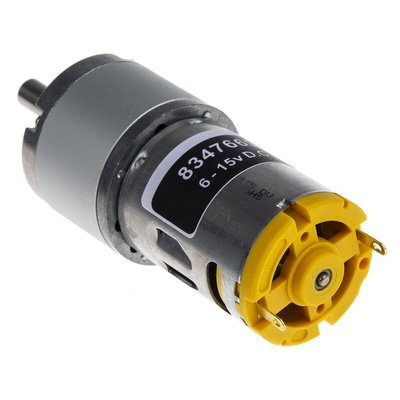

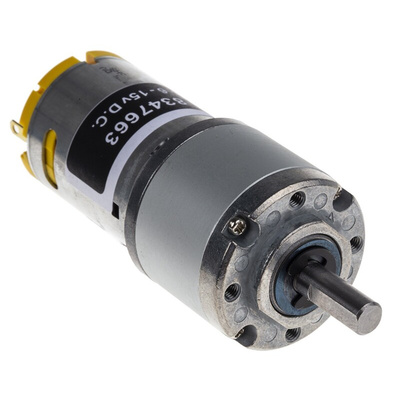

RS PRO Brushed Geared DC Geared Motor, 7.85 W, 12 V dc, 1482 gcm, 431 rpm, 6mm Shaft Diameter, Двигатель

RS PRO Brushed Gear DC Motor, 7.85 W, 12 V, 14.53 Ncm, 431 rpm, 6 mm Shaft Diameter

For sustaining high loads in position control applications, choose this geared motor from RS PRO. It's a combination of a DC motor and a miniature gearbox and offers speed reduction, making it useful for a variety of industrial robotics applications.
Since the gearheads in this motor use planetary construction, the unit efficiently handles high torque and high RPM (revolutions per minute), even at low speeds. This makes it an excellent choice for intermittent applications that are less demanding, such as in dental or massage chairs, laser printers and television mounts.
This electric motor can be wired directly to your machine, so you don't need an encoder or other digital control devices to operate it. Sintered bronze bearings and high-quality construction of the motor ensure a long service life while providing maintenance-free and quiet operation. The unit is especially handy for developing models in modular automation systems.

Features and Benefits

• Iron core construction
• Brushed gear DC motor type
• Planetary gearhead type
• Length of 67.5 mm
• Width of 32 mm
• Shaft diameter of 6 mm
• Maximum output torque of 14.53 Ncm (Newton centimetres)
• Output speed of 431 rpm (revolutions per minute)
• Power rating of 7.85 W
• Supply voltage of 12 V DC
• Current rating of 990 mA

RS PRO Datasheet
