9-215, Bernstein Tools for electronics Swivel Vice x 70mm

Bernstein Tools For Electronics Clamping Vice

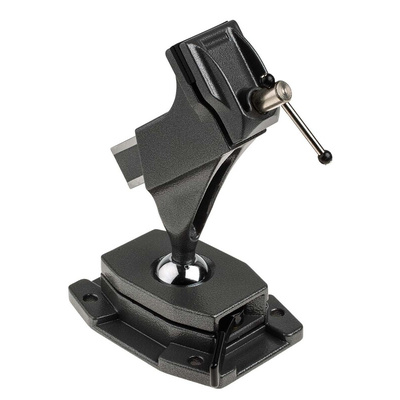

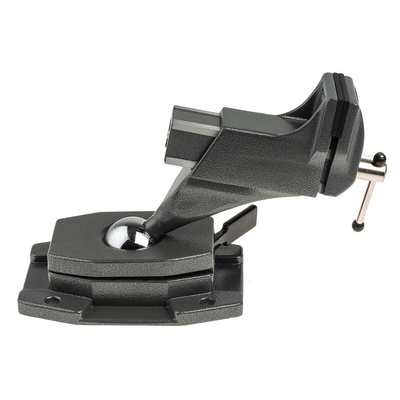

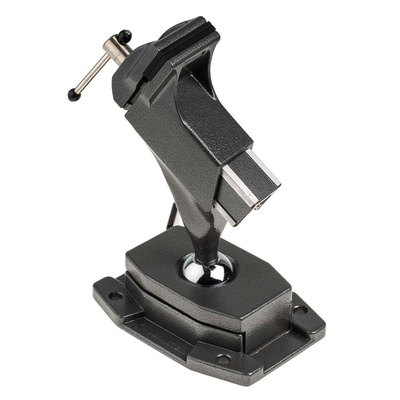

The Bernstein Tools for electronics clamping vice has a multi-angle vice bolt and jaw opening of 70mm. This is constructed on ball-and-socket joints are rotatable easily in all directions and capable of being set securely with maximum working capacity by a simple operation. By using a high-quality ball joint, the head of the vice can be tilted and fixed in any direction and offers optimum hold in any position. With the help of an adjusting screw at the lower seat of the ball, its mobility can be individually adjusted. The ball is held and released with a simple lever movement. It offers a long service life because of high-quality, powder-coated cast aluminium and surface-finished steel parts.

Features and Benefits

Ball power can be adjusted easily via a screw underneath the joint
Clamping depth is 38mm
Clamping pressure is 1470N
Clamping width is 70mm
Infinitely adjustable
Powder coated aluminium casting with surface-refined steel parts for long life and durability

Applications

Electronics workshop
Laboratories
Mechanical equipment
Medical equipment
Precision engineering
Test rooms

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
