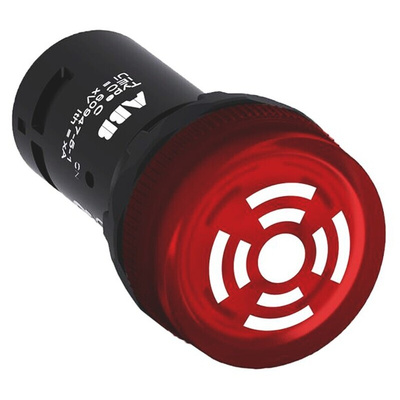

1SFA619600R6101 CB1-610R, ABB, ABB Compact, Panel Mount Red LED Buzzer, 22mm Cutout, IP66, IP67, IP69K, Round, 24V ac/dc

ABB Buzzer, Red LED, 53mA Current Rating - ABB Compact Series - 1SFA619600R6101 CB1-610R

Are you looking for a signalling device with both visual and audio capabilities? Choose this buzzer from ABB. Its round head features a red lens containing a long-lasting LED to produce a bright pulsating light that can be seen clearly in busy environments. The buzzer produces a 90dB pulsating sound, which is equivalent to a motorbike engine, so it can be easily heard over background noise in a busy workplace. As the unit has an IP69K rating, it's resistant to dust and hot high-pressure water jets, making it suitable for use in harsh environments where frequent washdowns take place.

Features & Benefits

• Operating temperature range between -25°C and +70°C for use in extreme conditions
• 300V insulation voltage to protect you from electric shocks
• Minimum service life of 5000 hours for reliable long-term performance
• 53mA current for low heat dissipation
• 60mcd luminance for effective signalling

Applications

• Automotive plants
• Manufacturing industry
• Food and beverage production

Where can I store this buzzer?

For optimum performance, this buzzer should be stored in an environment with a temperature between -40°C and +85°C.

ABB 22.5mm Compact Range

A comprehensive range of components for the user who wants a reliable and cost-effective solution to meet their needs.

Illuminated Buzzer Data Sheet

Catalogue - Pilot Devices, 22 mm
