85300, 3M Scotch 27 White Glass Cloth Electrical Tape, 12mm x 20m, Изоляционная лента

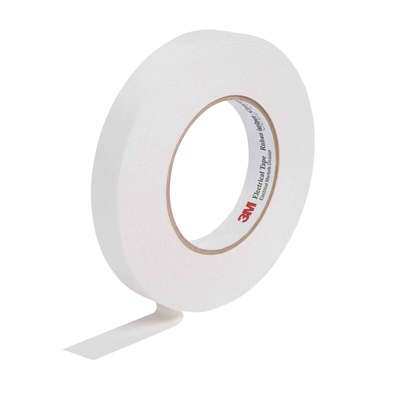

3M™ Scotch® Glass Cloth Electrical Tape 27

From 3M™, this Glass Cloth Tape 27 Tape is a woven insulating glass tape with thermosetting adhesive. Designed to operate up to 150°C, it is ideal for heat-stable insulation requirements. It operates in 600 volts in dry environments, for applications that require high mechanical strength and resistance to high temperatures. Iti is specially treated and prepared to provide corrosion-free protection.

• Woven insulating glass cloth tape
• Pressure-sensitive rubber thermosetting adhesive
• Designed to operate in 600-volt dry applications requiring high mechanical strength and resistance to high temperatures
• The adhesive is specially designed and prepared to provide corrosion protection
• Edge-tear resistant, conformable, and abrasion-resistant
• For use as a coil cover, anchor, banding and core, layer and crossover insulation; Printable
• UL Recognized

Application

3M™ Glass Cloth Tape 27 Tape is edge-tear resistant, comformable, abrasion resistant. For use as a coil cover, anchor, banding and core, layer and crossover insulation. This tape is used for heat-stable insulation for furnace and oven controls, motor leads, and switches.

Features and Benefits

FAQ's

Can wires with exposed cables be made safe with this tape?

Yes, the electrical tape is designed for this purpose, but would recommended seek professional advice to deal with exposed wires.

What are electrical tapes?

Electrical tapes are designed for electrical installation and repair work; soldered joints and seams; insulation of soldered joints, terminals, cable sockets and conduction rails.

Why choose 3M?

3M are a trusted name in tapes and adhesives. With a huge range of versatile and specialist tapes, 3M support dozens of industries and applications, from heavy-duty construction to DIY around the home. Whatever your needs, 3M supplies an adhesive tape that won't let you down.

3M Electrical Tape, Glass Cloth Type, White - Scotch 27 Series - 85300

Need to insulate components in demanding conditions? Choose this 12mm-wide electrical tape from 3M. By wrapping the tape around wires or cables, you can limit exposure to live conductors and reduce the risk of injury. A maximum operating temperature of +150°C means this is a safe choice for use in challenging environments. The tape comes on a 20m roll, so you'll have plenty in stock.

Features & Benefits

• Rubber thermosetting adhesive for resistance to chemicals and water damage
• Total thickness of 0.17mm, so it's a flexible material that won't add bulk
• Glass cloth type for resistance to corrosion

Applications

• Induction-type power supply leads
• Motor lead connectors
• Furnace and oven controls

Is this tape safe to use in powerful electrical systems?

Yes. As indicated by its dielectric breakdown rating, this tape can withstand voltages of up to 3000V.

Why choose 3M?

3M are a trusted name in tapes and adhesives. Whether for industrial or even domestic applications, 3M has a tape to suit your needs. From automotive masking to office supplies, 3M tapes are relied on by millions to get the job done. RS supplies a wide range of quality 3M tapes to suit the needs of the most discerning customer.

Electrical Tapes

For electrical installation and repair work; soldered joints and seams; insulation of soldered joints, terminals, cable sockets and conduction rails.
