85306, 3M Scotch 27 White Electrical Tape, 19mm x 20m, Изоляционная лента

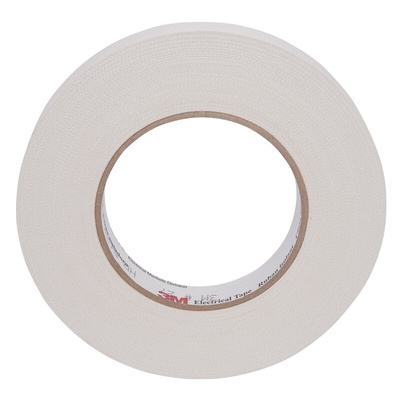

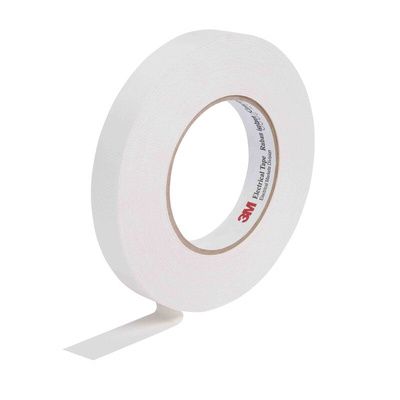

3M™ Scotch® Glass Cloth Electrical Tape 27

From 3M™, this Glass Cloth Tape 27 Tape is a woven insulating glass tape with thermosetting adhesive. Designed to operate up to 150°C, it is ideal for heat-stable insulation requirements. It operates in 600 volts in dry environments, for applications that require high mechanical strength and resistance to high temperatures. Iti is specially treated and prepared to provide corrosion-free protection.

• Woven insulating glass cloth tape
• Pressure-sensitive rubber thermosetting adhesive
• Designed to operate in 600-volt dry applications requiring high mechanical strength and resistance to high temperatures
• The adhesive is specially designed and prepared to provide corrosion protection
• Edge-tear resistant, conformable, and abrasion-resistant
• For use as a coil cover, anchor, banding and core, layer and crossover insulation; Printable
• UL Recognized

Application

3M™ Glass Cloth Tape 27 Tape is edge-tear resistant, comformable, abrasion resistant. For use as a coil cover, anchor, banding and core, layer and crossover insulation. This tape is used for heat-stable insulation for furnace and oven controls, motor leads, and switches.

Features and Benefits

FAQ's

Can wires with exposed cables be made safe with this tape?

Yes, the electrical tape is designed for this purpose, but would recommended seek professional advice to deal with exposed wires.

What are electrical tapes?

Electrical tapes are designed for electrical installation and repair work; soldered joints and seams; insulation of soldered joints, terminals, cable sockets and conduction rails.

Why choose 3M?

3M are a trusted name in tapes and adhesives. With a huge range of versatile and specialist tapes, 3M support dozens of industries and applications, from heavy-duty construction to DIY around the home. Whatever your needs, 3M supplies an adhesive tape that won't let you down.

3M Electrical Tape, 20m Length, 0.17mm Thickness - Scotch Series - 85306

Do you need to insulate electrical wires or other conductive materials? Use this tape from 3M for the maintenance, repair and installation of electrical equipment. It's a glass cloth type that has a maximum operating temperature of +130°C, meaning it's ideal for heat-stable insulation. This means you can use it in motor leads, switches and oven controls. The tape's high adhesion strength of 11.5kV/mm makes it a reliable option for demanding tasks.

• Rubber adhesive material provides resistance against corrosion and abrasion for a long service life
• 20m roll length so you can cut it precisely to suit your needs without waste
• 260N/cm tensile strength for durability
• White colour for quick identification in your setup

Applications

• Machine building
• Electrical installations
• Construction industry
• Automotive wiring

What dimensions does this electrical tape have?

It has a 0.17mm thickness and 19mm width, so it's flexible and easy to handle.

Why choose 3M?

3M are a trusted name in tapes and adhesives. Whether for industrial or even domestic applications, 3M has a tape to suit your needs. From automotive masking to office supplies, 3M tapes are relied on by millions to get the job done. RS supplies a wide range of quality 3M tapes to suit the needs of the most discerning customer.

Electrical Tapes

For electrical installation and repair work; soldered joints and seams; insulation of soldered joints, terminals, cable sockets and conduction rails.

Scotch 27 Glass Cloth Electrical Tape - data sheet

3M Glass Cloth Tape Datasheet
