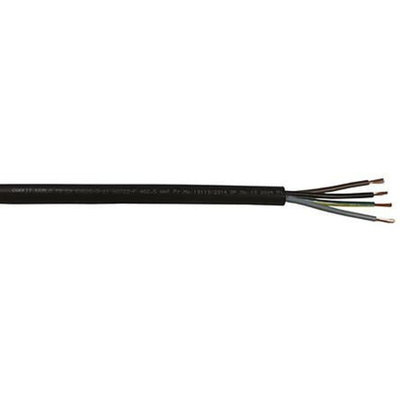

RS PRO 4 Core Power Cable, 2.5 mm², 100m Cross-Linked Compound, Type EM 8 to EN 50363-6 Sheath, 750 V

RS PRO 4-Core 2.5 mm² Mains Power Cable, Cross-Linked Compound, H07ZZ-F, Type EM 8 to EN 50363-6 Sheath, 100 m, 750 V

This power cable from RS PRO has a low smoke, zero halogen (LSZH) outer sheath that won't emit excess smoke or any toxic fumes in a fire. This makes it safe for domestic and commercial settings.
The four-core design allows you to pass multiple signals down the same cable and the 750 V voltage rating means it can carry mains power as well. It's suitable for internal and external use and medium-stress applications like stage lighting, mobile power units or audio-visual equipment.
The cable's sheath is made from a durable cross-linked polymer that increases resistance to mechanical and chemical damage for a durable, long-lasting product. Its multi-strand design means it's flexible enough to install in conduits and cable runs.

Features and Benefits

• American wire gauge size of 13 AWG
• Copper conductor material
• Conductor resistance of 7.98 Ω/km
• Stranded conductor type
• Core strand size of 0.25 mm
• Cross-sectional area of 2.5 mm²
• Meets H07ZZ-F harmonised code for fire-safe cables for mobile or medium-stress industrial applications
• Cross-linked insulation material
• Length of 10 m
• Operating temperature range of -5°C to +90°C

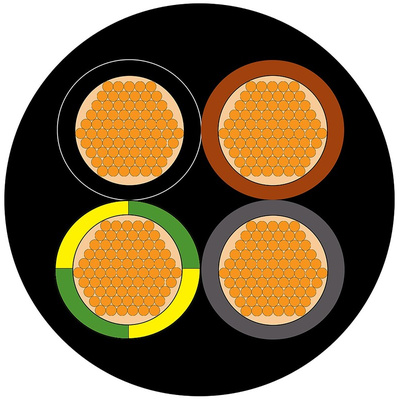

• Four cores
• 45 strands
• Outer diameter of 10.9 to 14 mm
• Type EM 8 sheath material to EN 50363-6 standard (halogen-free, cross-linked)
• Meets Euroclass Eca basic fire safety standards
• Voltage rating of 750 V
