RS PRO 3 Core 2.5 mm² Mains Power Cable, Cross-Linked Compound, Type EM 8 to EN 50363-6 Sheath 100, 750 V, H07ZZ-F

H07ZZ-F LSZH Cable

This H07ZZ-F harmonised cable is manufactured with a low smoke zero halogen (LSZH) sheath. It is installed where fire, smoke emission and toxic fumes create potential threats to life and equipment. Applications include supplying mobile power units, UPS installations, stage technology and audio visual equipment.

Features and Benefits

• Low smoke zero halogen sheath and insulation
• Able to withstand mechanical stress
• Suitable for indoor or outdoor installation

Standards

EN 50525-3-21, CENELEC HD22-13, CEI 20-19 Part 13, BS EN/IEC 60332-3, BS EN 60228, EN 50363

RS PRO 3 Core 2.5 mm² Mains Power Cable, Cross-Linked Compound, Type EM 8 to EN 50363-6 Sheath 100 m, 750 V, H07ZZ-F

This 3-core mains power cable has a low-smoke and zero-halogen sheath to reduce the risk of hazardous emissions in case of fire. This means it's ideal for environments in which fumes, smoke and fire could be life-threatening and damaging to equipment.

This cable can be used indoors or outdoors at temperatures ranging from -5°C to +90°C. With a cross-sectional area of 2.5 mm², it comes in a length of 100 m and can withstand medium mechanical stresses.

As part of the RS PRO range, this product has been tested for safety and reliability. It complies with low-smoke and zero-halogen emission standards CENELEC HD22-13, CEI 20-19 Part 13, BS EN/IEC 60332-3, BS EN 60228, EN 50363 and TS EN 50525-3-21. It also meets Euroclass Eca fire safety standards.

This cable is suitable for use in applications such as audio-visual equipment, mobile power units and UPS installations.

Features and Benefits

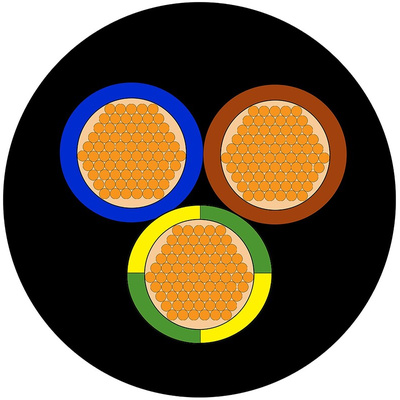

• 3-core cable
• Low-smoke, zero-halogen (LSZH) cable
• Stranded cable with cross-linked polymer sheath and insulation
• 45 core strands at 0.25 mm in size
• Length of 100 m
• Outer diameter of 10.9 to 14 mm
• Cross-sectional area of 2.5 mm²
• Conductor resistance of 7.98 Ω/km
• Voltage rating of 750 V
• AWG rating of 13
• Minimum operating temperature of -5°C
• Maximum operating temperature of +90°C
• Meets standards CENELEC HD22-13, CEI 20-19 Part 13, BS EN/IEC 60332-3, BS EN 60228, EN 50363 and TS EN 50525-3-21 for low smoke and zero halogen emissions
• Euroclass Eca compliant for fire safety

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet

Cables Selection Guide
