RS PRO 2 Core Power Cable, 0.75 mm², 100m, White, Fire Performance, 500 V, Кабель

RS PRO 2 Core 0.75 mm² Power Cable, White 100 m, 500 V, H05Z1Z1-F

Want a general power cable for use in public areas like hospitals and airports? This two-core thermoplastic-insulated cable from the RS PRO range offers you an effective and safe wiring choice.

These cables are often found in pendant lighting drops as well as supply leads in busy public places. As a low-smoke and zero-halogen option, the cable minimises dangerous emissions if there's a fire.

It operates at a range of temperatures from -5°C all the way up to +70°C. This flame-retardant cable has a cross-sectional area of 0.75 mm² and an outer diameter of 5.7 to 7.2 mm.

The cable is classed as a flexible Class 5 stranded-copper conducting cable (IEC 60228). You'll find it meets requirements for fire safety (IEC 60332-1) and contains minimal hazardous substances (RoHS). It's also safely sheathed in a thermoplastic compound (EN 50363-8, EN 50363-7).

Features and Benefits

• Low-smoke, zero-halogen power cable
• 2-core, 22-strand cable
• Internal wire size of 0.2 mm
• 18 AWG

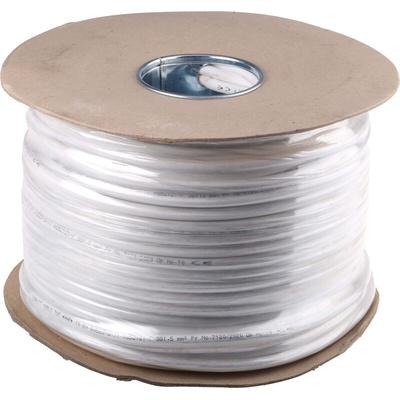

• Reel length of 100 m
• Stranded cable with a flame-retardant thermoplastic white sheath
• Resistance of 26 Ω/km
• Voltage rating of 500 V
• Outer cable diameter of 5.7 to 7.2 mm
• Cross-sectional area of 0.75 mm²
• Operating temperature range of -5˚C to +70˚C
• Compliant with IEC 60228, EN 50363-8, EN 50363-7, IEC 60332 and RoHS

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet

Cable Selection Guide
