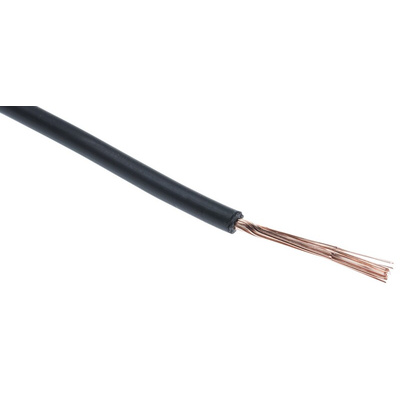

RS PRO Black 0.75 mm² Hook Up Wire, 18 AWG, 22/1.0 mm, 100m, Polyolefin Cross-linked EI5 Insulation

RS PRO Black Equipment Wire, 0.75 mm², 100 m

This RS PRO equipment wire is specifically designed for use with pipes and ducts, as well as the internal wiring of appliances. This versatile product has a flexible copper core and can be installed in a variety of circuit boards, sockets and household electrical applications.
The cable jacket is made from a cross-linked polymer material, meaning it has been molded by both heat and pressure. This gives the insulation a greater resistance to cracking, cutting and corrosion, making for a more durable product.
The cable sheath has good heat resistance and can operate at temperatures of up to +90°C. It's also a low smoke zero halogen (LSZH) material, meaning it won't produce toxic fumes or excess smoke in the event of fire, so the cable is safe to install in populated areas.

Features and Benefits

• American wire gauge size of 18 AWG
• Round cable shape
• Copper conductor material
• Core strand size of 1 mm
• Cross-sectional area of 0.75 mm²
• H05Z-K harmonised code for low-voltage flexible cables
• Polyolefin cross-linked EI5 insulation material
• Insulation wall thickness of 0.6 mm
• Length of 100 m
• Operating temperature range of -5°C to +90°C
• 22 strands
• Outer diameter of 2.8 mm
• Black sheath colour
• Meets Euroclass Eca fire safety standards
• Equipment wire type
• Voltage rating of 500 V

Datasheet 8360763

Cable Selection Guide

RS PRO Wiring and Connectivity Selection Guide 2021
