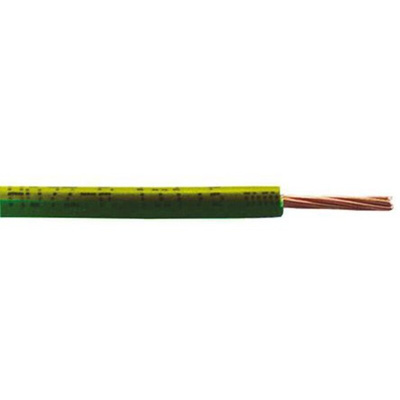

RS PRO Green/Yellow 2.5 mm² Hook Up Wire, 100m, Кабель

RS PRO 6491B H07Z-R Conduit Cable, Green/Yellow, 2.5 mm² CSA , 750 V

This conduit cable from RS PRO is designed for mains cable runs in building work, including power and lighting circuits. The wire is a multi-strand design, making it more flexible and easier to pass around corners and pull through conduits.
The green and yellow sheath colour shows that the wire is intended for earth connections and the flame-retardant polyvinyl chloride (PVC) insulation provides resistance to abrasion and chemical corrosion for increased durability and safe building practices.
This wire is suitable for earth-bonding pipes and any other equipment that needs grounding. At around 4 mm thick, it's narrow enough to easily fit through conduits. The cable can safely insulate voltages of up to 750 V and it comes in a 100 m reel for easy deployment.

Features and Benefits

• Cross-sectional area of 2.5 mm²
• Flame retardant
• Meets H07Z-R harmonised code for wires suitable for use in public spaces
• Insulation wall thickness of 0.8 mm
• Seven strands
• Outer diameter of 3.3 to 4.1 mm
• Green/yellow sheath colour
• Meets Euroclass Eca basic fire safety standards
• 6491B wire type (single-core, stranded wire for conduits and fixed connections)
• Voltage rating of 750 V
