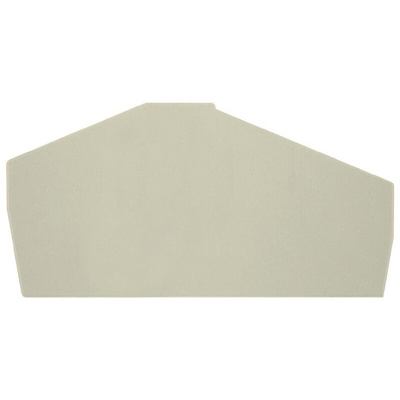

1771440000, Weidmuller Z Series End Cover for Use with Z Series Terminal

ZAP end plates

Cover for the last terminal in a block
For separations within one terminal block with terminals of different sizes
Touch-protected live parts
Visual separation of current circuits
End plates can also be used to ensure compliance with air gaps and creep distances
The outer dimensions of end plates correspond to the casing dimensions of the terminal block
Latching pins on the end plate make it easy to click them into place on the terminal rail

The Weidmuller ZAP ZDU6-2 type Z series end plates are fitted to the open side of the last modular terminal before the end bracket. The use of an end plate ensures the function of the modular terminal and the specified rated voltage. It guarantees protection against contact with live parts and makes the final terminal finger-proof.

RoHS Conform
Material Wemid
Colour dark beige
Installation advice Direct mounting

Datasheet - 1771440000
