XY2CJS15H29, Telemecanique Sensors XY2CJ Rope Pull Switch, 20m, NO/NC, , Dual Direction, Переключатель

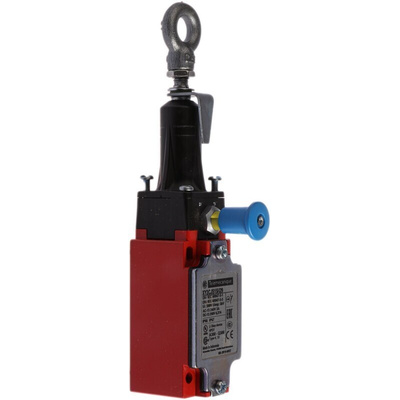

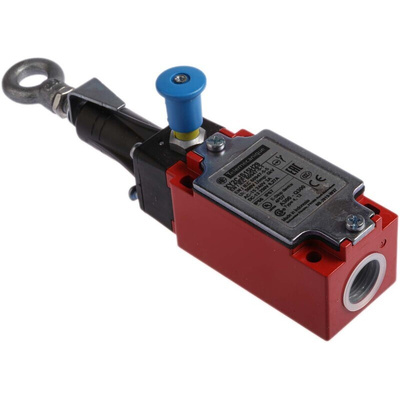

Telemecanique Sensors Emergency Stop Rope Pull Switch

The Telemecanique Sensors XY2CJ series emergency stop rope pull switch has a 1NC/1NO contact configuration. It has Zamak housing and maximum AC/DC voltage is 240VAC and 250VDC respectively and the current rating of the switch is 3A and 270mA for AC and DC respectively. It is designed to prevent injury to people or damage to machinery when a normal emergency stop function is not available. This product is easy to install and offers a quick visual check of the switch status for machine restart. This switch has a rope span of 20m and the mounting orientation is to the left side, right side.
Note
Manufacturer part numbers with the suffix H29 are the ISO M20 threaded cable entry version.

Features and Benefits

Embedded safety spring ensures function is maintained in the event of spring damage
Fast mounting and wire adjustment with tensioner accessory
Colour coded sections (green and yellow) on the pull reset button offer an easy visual check of the switch status for a quick machine restart
Up to 20m cable length for the XY2CJS and up to 30m cable length for the XY2CJL & XY2CJR
Four position turret head rotatable by 90° turns
Various electrical connection options available

Applications

Conveyor systems
Packaging
Textiles
Transfer machines
Presses
Woodworking equipment
Paint lines
Test laboratories

Certifications

UL approved
CCN certified
CSA certified
CE certified
IP66 rated
IP67 rated
