EOS Switching Power Supply, LFWLP225-1001, 12V dc, 18.75A, 225W, 1 Output, 390 V dc, 85 → 264 V ac Input Voltage, Источник питания

EOS 225W AC/DC Power Supply - LFWLP225 Series

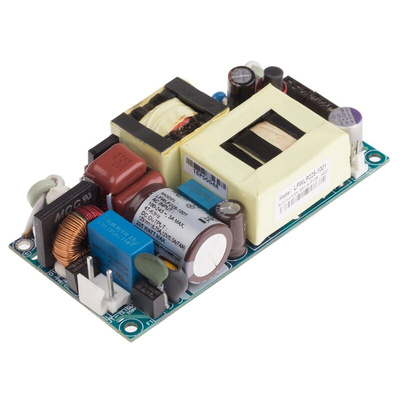

The Eos Power LFWLP225 is a series of 225W, open frame, switch mode power supplies, these EOS Power Supplies have a universal input, they are compact 4x2 inches in size and offer a high efficiency up to 94%. The LFWLP225 series of switch mode power supplies are suitable for industrial and automation applications.

4 x 2 x 1 Inches Form factor
225 Watts with Forced Air Cooling & 112.5 Watts Convection Cooling
Efficiencies up to 94%
-40° to 70° operating temperature
12V Fan Output, Thermal Shut-Down feature
>800K Hours MTBF
Standby Power ˂0.5W

Standards

EN60950-1, IEC60950-1 (ed.2), UL60950 (ed.2), CSA C22.2 No.60950-1 (ed.2), Class 1 SELV

Approvals

Nemko, UL, cUL

225 Watt Industrial Data Sheet
