LFMWLP225-1001, EOS, 225W Embedded Switch Mode Power Supply SMPS, 12V dc, Open Frame, Medical Approved, Источник питания

EOS 225W AC/DC Medical Power Supply - LFMWLP225 Series

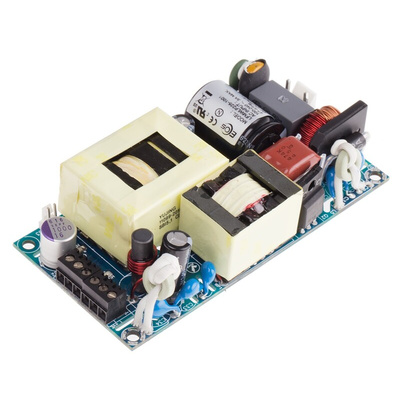

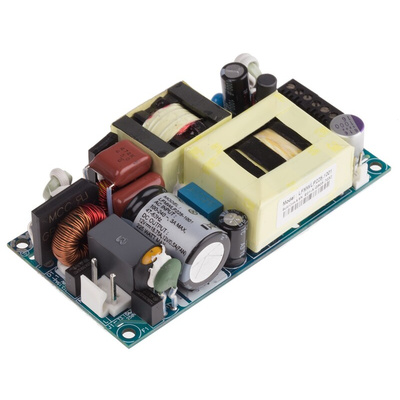

The Eos Power LFMWLP225 is a series of 225W, open frame, medical switch mode power supplies, these EOS Power Supplies have a universal input, they are compact 4x2 inches in size and offer a high efficiency up to 94%. The LFMWLP225 series of medical switch mode power supplies are suitable for applications including dental and laboratory equipment and medical instruments.

4 x 2 x 1 Inches Form factor
225 Watts with Forced Air Cooling & 112.5 W Convection Cooling
Efficiencies up to 94%
-40° to 70° operating temperature
12 V Fan Output, Thermal Shut-Down feature
>800K Hours MTBF
Standby Power ˂0.5 W
Medical (BF) safety approvals
The EX option comes with the option of an extended warranty of 7 years

Standards

EN60601-1, IEC60601-1 (ed.3), ANSI/AAMI ES60601-1, CSA C22.2 No.60601-1

Approvals

Nemko, UL, cUL

225 Watt Medical Series Data Sheet
