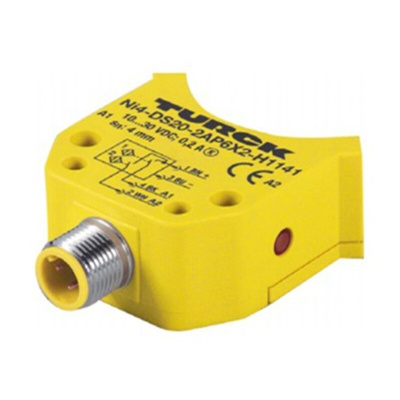

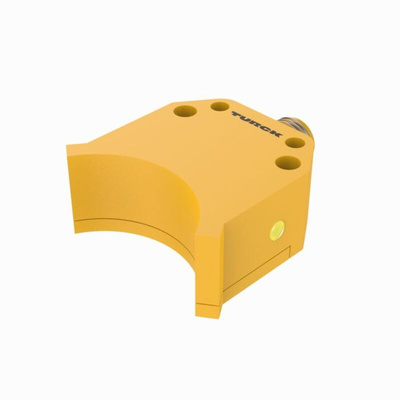

Ni4-DS20-2AP6X2-H1141, Turck Inductive Block-Style Proximity Sensor, 4 mm Detection, PNP Output, 10 → 30 V dc, IP67, Индуктивный датчик приближения

8375352
Номер производителя: Ni4-DS20-2AP6X2-H1141Производитель: Turck
Цена за шт.
72146.10 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Turck Proximity Sensor, 10 to 30V DC Operating Voltage Range, 4mm Detection Range - Ni4-DS20-2AP6X2-H1141

Use this inductive proximity sensor from Turck to keep a close eye on objects in your automated system. It generates a magnetic field through an oscillating circuit, which lets it quickly detect metal objects without any contact. This means it's protected against wear for an extended service life and minimal maintenance. A robust glass-reinforced PBT housing makes the unit just what you need for harsh environments, as it's resistant to heat and abrasion.

Features & Benefits

• Flame-retardant for safety in the event of a fire
• Protected against short circuits to minimise the chance of power spikes damaging equipment
• LEDs let you conveniently know when its output is energised
• Wide operating voltage range between 10 and 30V DC makes it compatible with various low-voltage power supplies

Applications

• Oil and gas industries
• Automotive manufacturing
• Shipyards
• Packaging facilities

Is this proximity sensor dustproof and waterproof?

The component has an IP67 rating, which indicates that it's dust-tight and protected against immersion in 1m of water for up to 30 minutes. This makes it a good choice for environments with high levels of dust and moisture.

Turck Banner Barrel Inductive Proximity Sensors

Inductive sensors are designed for contact-less and wear-free detection. They are the perfect solution for breweries, frozen food, dairies and packaging applications. Resistant to cleaning agents and disinfectants and exceed the protection classes IP68 & IP69K. These sensors are available as standard versions in chrome plated brass barrels or stainless steel housing with LCP front cap and double lip seal for heavy use or sudden changes in temperature. All inductive sensors of the new uprox+ generation operate with highest switching distances, feature an extended temperature range and are easily mounted.Turck inductive proximity sensors are manufactured with shielded coil, designated by “Bi” in the part number, and a non-shielded coil, designated by “Ni” in the part number.

Техническая спецификация
pdfDatasheet
Вид корпуса:
Block
Глубина:
45мм
Диапазон обнаружения:
4 мм
Длина:
52мм
Защита от короткого перегрузочного замыкания:
Да
Защита от обратной полярности:
Да
Коммутируемый ток:
200 мА
Максимальная частота переключений:
1кГц
Максимальное напряжение постоянного тока:
30В
Материал корпуса:
PBT, Пластмасса
Напряжение питания:
10 → 30 В пост. тока
Рабочая температура - максимальная:
+70°C
Рабочая температура - минимальная:
-25°C
Степень защиты IP:
IP67
Технология датчика:
Индуктивный
Тип выхода:
PNP
Тип клеммы:
4-контактный M12 Разъем
Тип монтажа:
Non-Flush
Частота переключений:
50 Гц
Ширина:
20мм
Экранирование:
Экранированный
