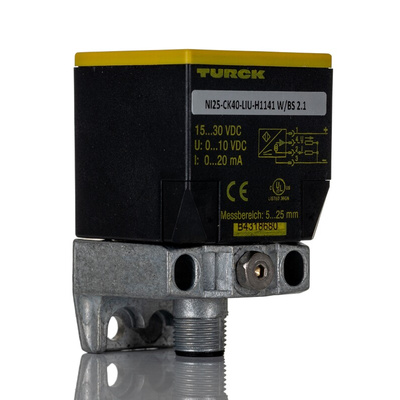

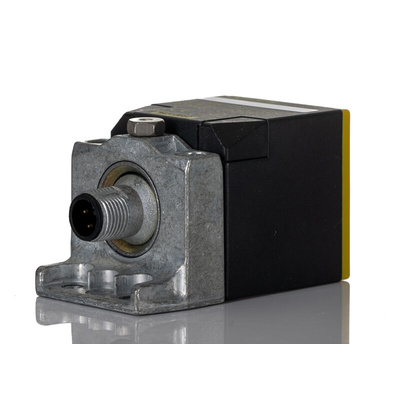

Ni25-CK40-LIU-H1141, Turck Inductive Block-Style Proximity Sensor, 25 mm Detection, Analogue Output, 15 → 30 V dc, IP67, Индуктивный датчик приближения

NI 25 Series

The NI 25 Series of inductive proximity sensors from Turck Banner.

Turck Proximity Sensor, Short-Circuit Protection, +70°C Maximum Operating Temperature - NI25 Series - NI25-CK40-LIU-H1141

Use this proximity sensor from Turck to achieve contactless object identification in your industrial equipment. It's an inductive type that uses electromagnetic fields to detect the presence of a target without making physical contact. The device accurately identifies objects within a 25mm detection range, so it's ideal for close-range monitoring applications. Corrosion and impact are held at bay thanks to the unit's plastic housing, assuring you of long-lasting use in demanding settings. Its non-flush design facilitates easy installation in many different location types.

Features & Benefits

• Ruggedly built to perform in an operating temperature range between -25°C and +70°C
• Withstands up to 30g of impact for high shock resistance
• Short-circuit protection reduces the risk of damage from electrical hazards
• Compact dimensions of 65 (L) x 40 (W) x 40mm (D) for space-efficient installation

Applications

• Food and beverage processing
• Consumer electronics
• Mining equipment
• Pick and pack centres

Is this sensor dust-proof?

Yes. The device has an IP67 rating, indicating it's fully protected against dust and immersion in 1m of water for up to half an hour.

Turck Banner Inductive Proximity Sensors

Inductive sensors are designed for contact-less and wear-free detection. They are the perfect solution for breweries, frozen food, dairies and packaging applications. Resistant to cleaning agents and disinfectants and exceed the protection classes IP68 & IP69K. These sensors are available as standard versions in chrome plated brass blocks or stainless steel housing with LCP front cap and double lip seal for heavy use or sudden changes in temperature. All inductive sensors of the new uprox+ generation operate with highest switching distances, feature an extended temperature range and are easily mounted.

Datasheet
