BIM-M12E-AP4X-H1141, Turck Inductive Barrel-Style Proximity Sensor, M12 x 1, 90 mm Detection, PNP Output, 10 → 65 V dc, IP67, Индуктивный датчик приближения

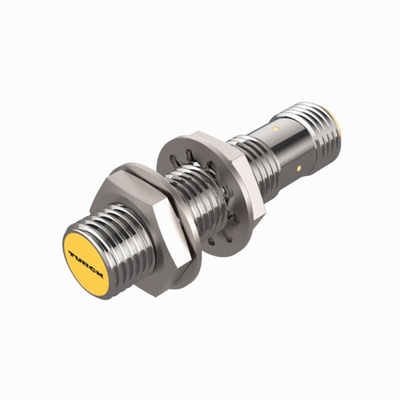

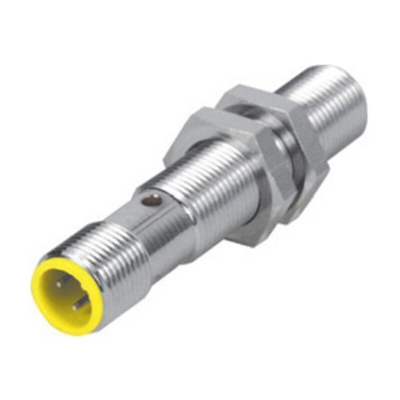

Turck Proximity Sensor, 62mm Length, 90mm Detection Range - BiM-M12 Series - BIM-M12E-AP4X-H1141

Need a contactless way to detect the presence of magnetic objects? This barrel-style proximity sensor from Turck is just the thing. Its detection range of 90mm means it can go the distance in small areas. It's a magnetic inductive sensor, which works by detecting eddy currents. This means it can detect metals even through materials such as plastic, wood and non‐ferrous metals, making it a powerful pick. Installation is a cinch thanks to the 4-pin M12 socket at one end and the M12 thread at the other.

Features & Benefits

• Operating voltage range between 10 and 65V DC for use in low-power applications
• IP67 rating indicates it's dustproof and can withstand submersion in 1m of water for up to 30 minutes
• Protection against short circuits and reverse polarity to prevent electrical damage

Applications

• Transportation
• Quality assurance
• Process control
• Food and beverage manufacturing
• Agricultural equipment

What temperatures can I use this proximity sensor in?

The sensor has a wide operating temperature range between -25°C and +70°C, so it can stand up to use in harsh industrial conditions.

Datasheet
