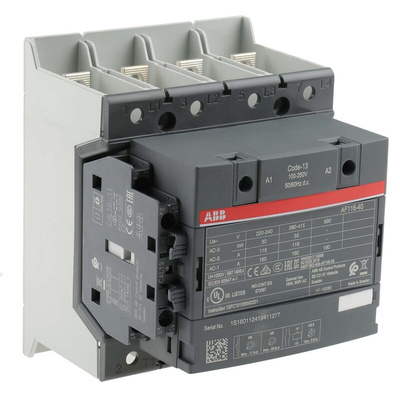

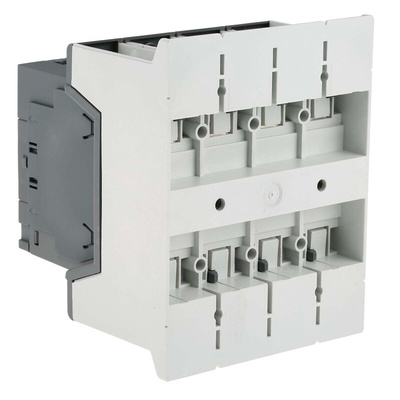

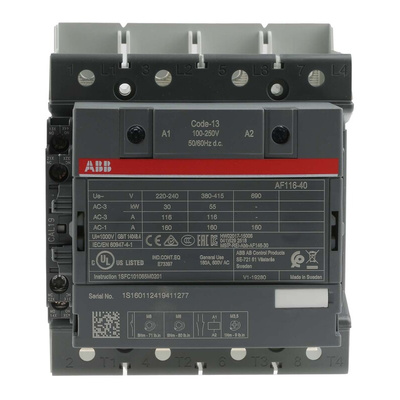

1SFL427102R1311 AF116-40-11B-13, ABB AF Series Contactor, 230 V ac Coil, 4-Pole, 160 A, 55 kW, 4NO, 690 V ac, Контактор

ABB Contactor, 50Hz Main Circuit Rated Frequency, 8kV Rated Impulse Withstand Voltage - AF Series - 1SFL427102R1311

Want to boost system performance? Make the switch to this contactor from ABB. It rapidly turns equipment on and off to ensure efficient operation. Thanks to its 160A current rating and switching frequency of 300 cycles per hour, it handles the demands of heavy-duty applications without batting an eye. A wide voltage range between 100 and 250V AC adapts to input variations, saving energy and stabilising operations in fluctuating networks. Four poles and an integrated auxiliary contact let you simplify your setup to save space and cut down on wiring.

Features & Benefits

• Built-in surge protection helps prevent damage and service disruptions
• Mechanical durability of 5 million cycles for a long lifespan
• IP20 rating indicates shielding against objects larger than 12mm, including your fingers

Applications

• Industrial automation
• Pharmaceutical production
• Wastewater treatment
• Access controls

How big is this contactor?

It's a compact unit that measures only 150 (H) x 120 (W) x 128mm (D), so it's a space-saver for use in busy systems.

Can I combine this contactor with other electrical devices?

Yes, thanks to the unit's modular design, it's easy to extend its function by adding compatible auxiliary contact blocks.
